Features

Stinger Spike System® XL is a compact, lightweight, easy-to-use tire deflating device that is extremely effective in stopping pursuits involving large vehicles including large trucks, farm vehicles, and military-type vehicles.

Superior Spike Penetration:
Stinger Spike System spikes are hollow. This allows air to escape at a controlled rate without causing a blowout or sudden loss of control. The spikes are 2.1" in length and are made of 304-T7 stainless steel. The XL’s 2.1" length spike acts in conjunction with our patented rock-and-tilt mechanism base. This Stinger technology effectively penetrates thicker tires to safely and quickly end pursuits involving many larger vehicles including large trucks, farm vehicles, and military-type vehicles.

Other Features:
The Stinger XL is a 15.5-ft wide system that covers multiple traffic lanes and is furnished with replacement spikes, safety tip guards, and a spike replacement tool in a compact, quick-deployment carrying case. Additional Stinger replacement spikes are provided free of charge. For incredible pursuit stopping power, call your local Stinger Representative. To locate the representative nearest you, call (800)-STINGER.

Training Support:
The latest pursuit policies being enacted by law enforcement agencies call for practical, hands-on training in the use of any tire deflation device. Federal Signal has led the industry in providing such comprehensive training with our Stinger Spike System. In addition to its North American network of certified dealer/instructors, Federal Signal offers classroom materials, training videos, and un-spiked models for training and practice in the proper deployment and retraction of the system. For more information on Stinger Spike System training, please fill out the “request information” form found at the top of the product webpage.

Request Stinger Spike System Training

Specifications

Extended Length:
90200 Trooper - 15.8 feet extended with a rope no less than 40' in length
90210 Metro - 10 feet extended with a rope no less than 40' in length
90225 Defender - 25 feet extended with a rope no less than 40' in length
Stinger XL - 15.5 feet extended with a rope no less than 40' in length

Spike Length:
90200 Trooper - 1.8"
90210 Metro - 1.8"
90225 Defender - 1.8"
Stinger XL - 2.1"
Rat Trap II - 1.8"

Spike Count:
90200 Trooper - 110 spikes 90210 Metro - 70 spikes
90225 Defender - 180 spikes Stinger XL - 110 spikes
Rat Trap II - 2 spikes

Dim. (H x L x D):
90200 Trooper Case - 18.0 in x 20.0 in x 3.5 in (45.7cm x 50.8cm x 8.9cm)
90210 Metro Case - 18.0 in x 20.0 in x 3.5 in (45.7cm x 50.8cm x 8.9cm)
90225 Defender Case - 21.0 in 24.5 in x 3.5 in (53.3cm x 62.2cm x 8.9cm)
Stinger XL Case - 18.0 in x 20.0 in x 3.3 in (45.7cm x 50.8cm x 8.4cm)
Rat Trap II - 2.2 in x 4.0 in x 0.9 in (5.6cm x 10.2cm x 2.3cm)

Ship Weight:
90200 Trooper - 15.0 lbs (6.9 kg) 90210
Metro - 11.0 lbs (5 kg) 90225
Defender - 14.5 lbs (6.7 kg)
Stinger XL - 15.0 lbs (6.9 kg)
Rat Trap II - 1.0 lb (0.5 kg)

Videos

Stinger Spike System (2:44)

Ordering Information

Model Types
Model Description
90210 Spike system, 2010 Metro, 10-ft (Includes 40-ft of rope with handle, spike replacement kit, spike insertion tool, and hard storage case)
90200 Spike system, 2015 Trooper, 15.5-ft (includes 40-ft of rope with handle, spike replacement kit, spike insertion tool, and hard storage case)
90225 Spike system, 2025 Defender, 25-ft (Includes 40-ft of rope with handle, spike replacement kit, spike insertion tool, and hard storage case)
93200 Spike system, 2015 XL, 15.5-ft with 2.1-inch spikes (Includes 40-ft of rope with handle, spike replacement kit, spike insertion tool, and hard storage case)
90035 Training Unit, 15.5-ft with case (*Training Systems are not designed to hold spikes and are not to be used in an actual vehicle pursuit)
90209 Training Unit, 15.5-ft without case (training Systems are not designed to hold spikes and are not to be used in an actual vehicle pursuit)
90216 Training Unit, 25-ft without case (training Systems are not designed to hold spikes and are not to be used in an actual vehicle pursuit)
Accessories
Product # Description
90502 Pursuit prevention device, Rat Trap II, pocket-size 1/4-inch diameter spikes

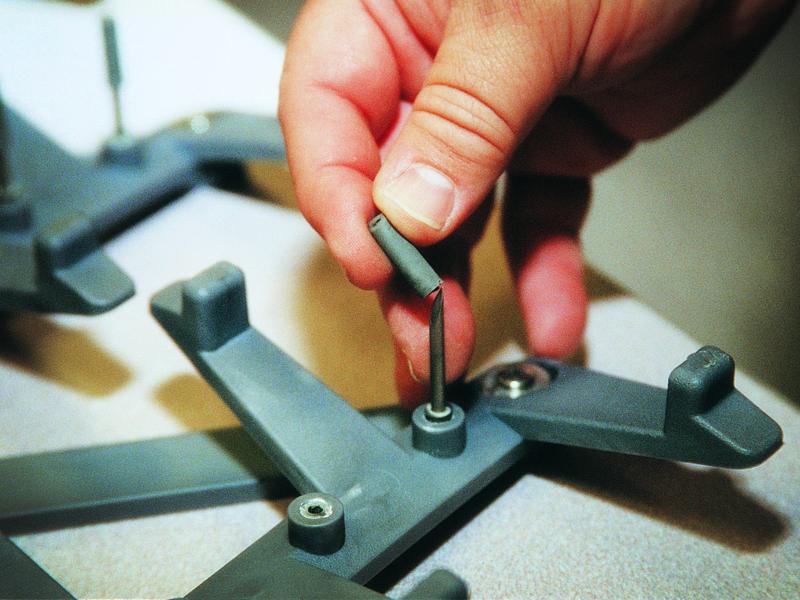

Z50035SSG Spike insertion tools
Z50040B Spike tip guards (10)
50051B Compression sleeves (12)
90025 Spike section, single subassembly, Series 2000
90026 Replacement spike kit, Series 2000, 10 spikes, tip guards and sleeves
90027 Replacement spike kit, Rat Trap II, 4 spikes
93026 Replacement spike kit, Series XL, (10) spikes, tip guards, and sleeves
90400 Rope & handle
90031 Case for 2015 trooper
90031-10 Case for 90210
90041 Case for 2025 defender
