- Quick and simple installation
- (3) Top-channel options
- Center bar designed for easy access speaker mounting
- Center bar pre-drilled for additional accessory mounting
- Simple, single MPS6U top-channel mounting bracket for ease of assembly
- Available for the Ford Police Interceptor Utility and Chevrolet Tahoe
- Manufactured with HRPO steel
- Black, textured powder coat for resistance against scratches and scuffs
- 7-gauge steel, pre-drilled side uprights for MicroPulse MPS6U series mounting
- 7-gauge steel, pre-drilled lower guards for MicroPulse series mounting
- Mounting kit and hardware included
- Three-year warranty
Features
Extremely Strong Design
The DFC Series is designed with maximum safety in mind, providing the best strength, durability, and protection. Components are manufactured with HRPO steel engineered to provide extra protection to the grille and front end.
Ease of Installing and Customization
The DFC Push Bumpers are quick and easy to install with no drilling required. The side uprights are pre-drilled for installation of MicroPulse® series lights for added side warning. The DFC series offers a unique center bar with dual-speaker mounting locations for ease of installation and serviceability. Optional pre-drilled lower guards allow for additional lighting using MPS6U lights. Solid, two-light, and four-light top channel options are available for further customization. Two-light and four-light top channels utilize MPS6U lights, sold separately.

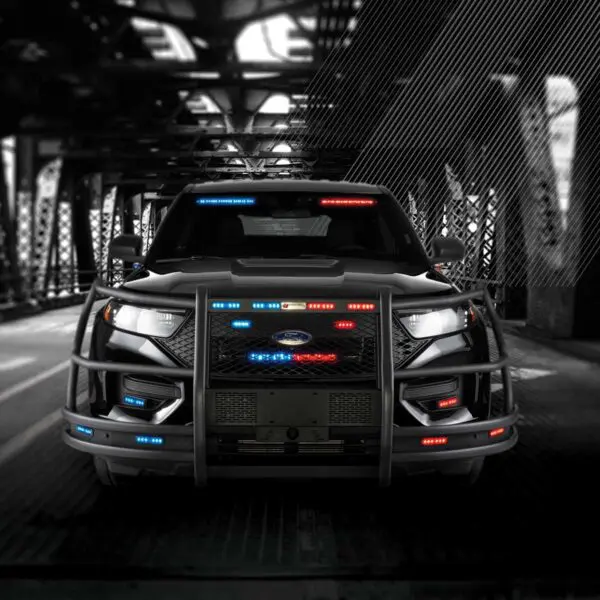

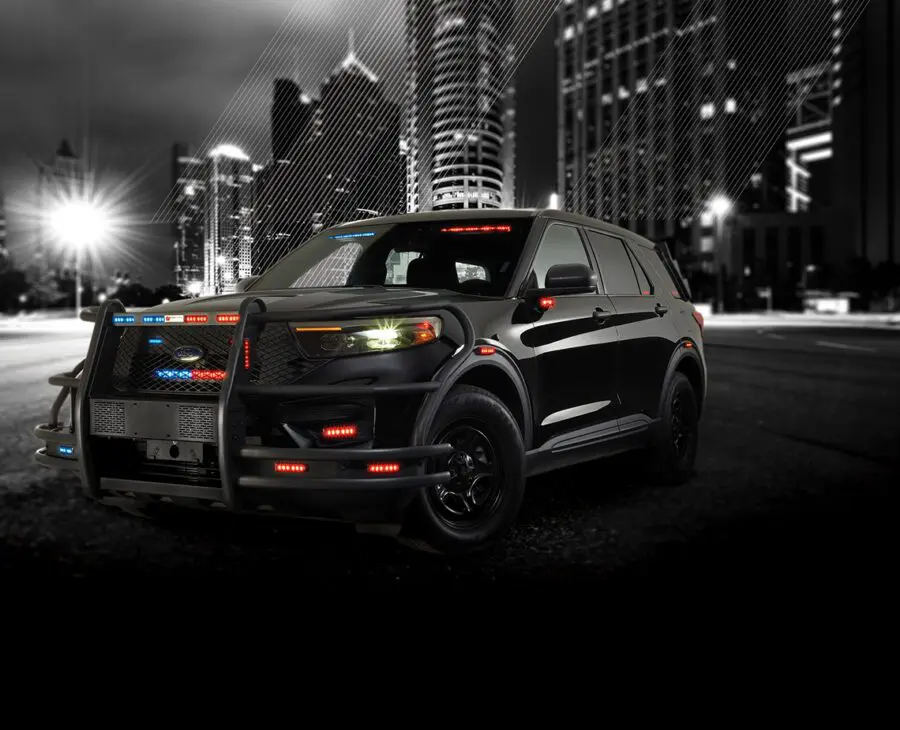

Push Bumper
This push bumper is made of seven-gauge steel uprights, with two 1-1/2-inch wide rubber strips and a lower C-channel, to provide extra protection and strength. The uprights are pre-drilled for the addition of lower guards, and the center bar allows for easy mounting of speakers and additional accessories. The black, textured powdered coat on the push bumper provides added resistance against scratches and scuffs.

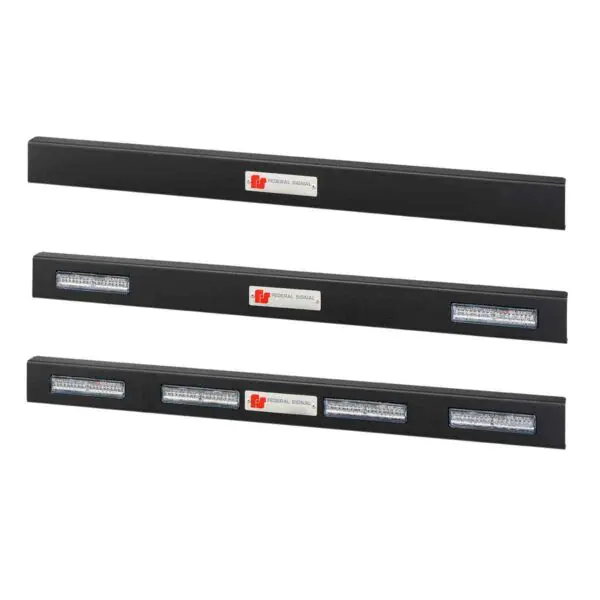

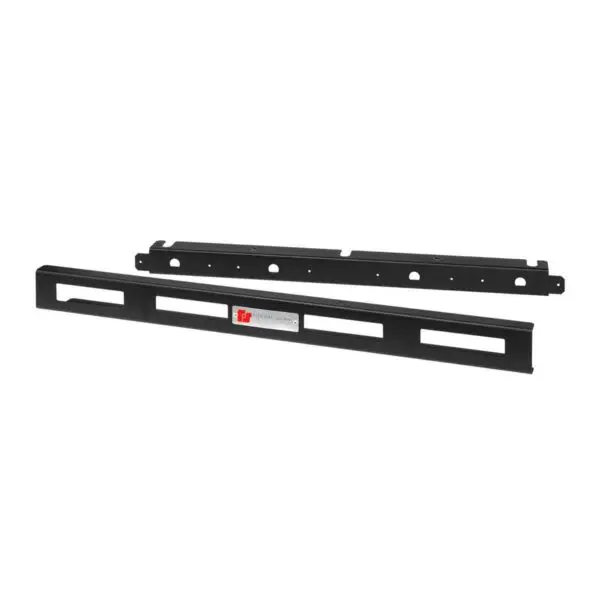

Top Channel Options
The DFC series offers three top-channel options:
- Solid top channel
- Two-Light top-channel for use with MPS6U lights (lights sold separately)
- Four-Light top-channel for use with MPS6U lights (lights sold separately)
Lower Guard Options
The lower guards are made of heavy-duty seven-gauge steel horizontal bars. DFC series lower guards are designed to bolt directly to a DFC Series push bumper for the best PIT maneuver possible.
Upper Guard Option
The upper guard option offers additional protection to the front end as well as headlight protection. The upper guards are made from eleven-gauge galvanized steel that is treated with a textured powder coat for protection against rust. The upper guards bolt directly to the push bumper and lower guards, allowing for an easier installation.
Wire Cover Option
Wire Covers are available for the Ford Police Interceptor Utility and Chevrolet Tahoe.
Specifications
| Model # | L x W x H | Ship Weight |
| DFC-PB-FPIU20 | 36 in x 34 in x 11 in (91.4 cm x 86.4 cm x 27.9 cm) |
82 lb (37.2 kg) |
| DFC-PB-TAH21 | 40 in x 37 in x 11 in (101.6 cm x 94 cm x 27.9 cm) |
82 lb (37.2 kg) |
| DFC-LG-FPIU20 | 38 in x 18 in x 11 in (96.5 cm x 45.7 cm x 27.9 cm) |
64 lb (29.1 kg) |
| DFC-LG-TAH21 | 38 in x 19 in x 11 in (96.5 cm x 48.3 cm x 27.9 cm) |
64 lb (29.1 kg) |
| DFC-UG-FPIU20 | 40 in x 28 in x 14 in (101.6 cm x 71.1 cm x 35.6 cm) |
49 lb (22.2 kg) |
| DFC-UG-TAH21 | 46 in x 23 in x 14 in (116.8 cm x 58.4 cm x 35.6 cm) |
49 lb (22.2 kg) |
| DFC-TC2L | 32 in x 3 in x 3 in (81.3 cm x 7.6 cm x 7.6 cm) |
4 lb (1.8 kg) |
| DFC-TC2L-1 | 36 in x 3 in x 3 in (91.4 cm x 7.6 cm x 7.6 cm) |
4lb (1.8 kg) |
| DFC-TC4L | 32 in x 3 in x 3 in (81.3 cm x 7.6 cm x 7.6 cm) |
4 lb (1.8 kg) |
| DFC-TC4L-1 | 36 in x 3 in x 3 in (91.4 cm x 7.6 cm x 7.6 cm) |
4 lb(1.8 kg) |
| DFC-TCP | 32 in x 3 in x 3 in (81.3 cm x 7.6 cm x 7.6 cm) |
4 lb (1.8 kg) |
| DFC-TCP-1 | 36 in x 3 in x 3 in (91.4 cm x 7.6 cm x 7.6 cm) |
4 lb (1.8 kg) |
| DFC-WC-FPIU20 | 17 in x 6 in x 2 in (43.2 cm x 15.2 cm x 5.1 cm) |
3 lb (1.4 kg) |
| DFC-WC-TAH21 | 17 in x 6 in x 2 in (43.2 cm x 15.2 cm x 5.1 cm) |
3 lb (1.4 kg) |
Resources
Product Literature
Product Manuals
Ordering Info
Model Types
| MODEL | DESCRIPTION |
|---|---|
| DFC-PB-FPIU20 | Push bumper, 2020-2023 Ford Police Interceptor Utility |
| DFC-PB-TAH21 | Push bumper, 2021-2023 Chevrolet Tahoe SSV/PPV |
| DFC-TC2L | Top Channel, Two-Light top-channel for Ford Police Interceptor Utility push bumper, use with MPS6U lights (lights sold separately), order one with each push-bumper |
| DFC-TC2L-1 | Top Channel, Two-Light top-channel for Chevrolet Tahoe push bumper, use with MPS6U lights (lights sold separately), order one with each push bumper |
| DFC-TC4L | Top Channel, Four-Light top-channel for Ford Police Interceptor Utility push bumper, use with MPS6U lights (lights sold separately), order one with each push bumper |
| DFC-TC4L-1 | Top Channel, Four-Light top-channel for Chevrolet Tahoe push bumper, use with MPS6U lights (lights sold separately), order one with each push bumper |
| DFC-TCP | Top Channel, Solid top-channel for Ford Police Interceptor Utility push bumper, order one with each push bumper |
| DFC-TCP-1 | Top Channel, Solid top-channel for Chevrolet Tahoe push bumper, order one with each push bumper |
| DFC-LG-FPIU20 | Lower guards for use with 2020-2023 Ford Police Interceptor Utility push bumper, optional |
| DFC-LG-TAH21 | Lower guards for use with 2021-2023 Chevrolet Tahoe push bumper, optional |
| DFC-UG-FPIU20 | Upper guards for 2020-2023 Ford Police Interceptor Utility push bumper, optional |
| DFC-UG-TAH21 | Upper guards for 2021-2023 Chevrolet Tahoe push bumper, optional |
| DFC-WC-FPIU20 | Wire covers for use with 2020-2023 Ford Police Interceptor Utility push bumper, optional wire covers |
| DFC-WC-TAH21 | Wire covers for use with 2021-2023 Chevrolet Tahoe push bumper, optional wire covers |
| DFC-PB-FRD21 | Push bumper, Ford® F-150®, 2021-2023 |
| DFC-PB-DUR21 | Push bumper, Dodge® Durango®, 2021-2023 |
| DFC-TC2L-2 | Two-Light top channel for Ford F-150 and Dodge Durango push bumper, use with MPS6U lights (lights sold separately) |
| DFC-TC4L-2 | Four-Light top channel for Ford F-150 and Dodge Durango push bumper, use with MPS6U lights (lights sold separately) |
| DFC-TCP-2 | Solid top channel for Ford F-150 and Dodge Durango push bumper |
| DFC-LG-FRD21 | Optional Lower guards for Ford F-150, 2021-2023 push bumper |
| DFC-LG-DUR21 | Optional Lower guard for Dodge Durango, 2021-2023 push bumper |
| DFC-UG-FRD21 | Optional Upper guards for Ford F-150, 2021-2023 push bumper |
| DFC-UG-DUR21 | Optional Upper guard for Dodge Durango, 2021-2023 push bumper |
| DFC-SB-750501 | (1) Speaker bracket, for mounting (1) AS124 speaker |
Accessories
| PRODUCT # | DESCRIPTION |
|---|---|
| DFC-SB-750501 | (1) Speaker bracket, for mounting (1) AS124 speaker |
| DFC-SB-ES100C | (1) Speaker bracket, for mounting (1) ES100C speaker |
| DFC-WC-FRD21 | Wire covers for use with Ford F-150, 2021-2023 push bumper |
| DFC-WC-DUR21 | Wire covers for use with Dodge Durango, 2021-2023 push bumper |
| DFC-SB-ES100C | (1) Speaker bracket, for mounting (1) ES100C speaker |
