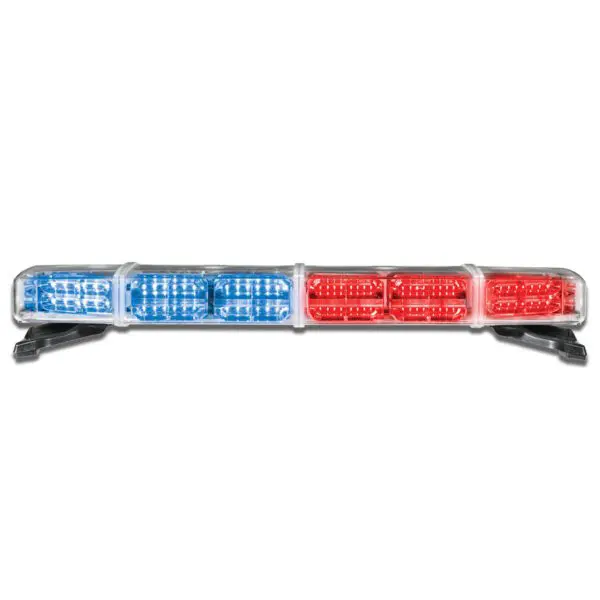

Navigator® Serial Light Bar
- High-profile, linear light bar
- Available in 45", 53", and 60" lengths
- Amber, Blue, Green, Red, and White
- Single- and dual-color capability
- SignalMaster™ directional warning available
- Front flood, takedowns, alley lights, work lights, and S/T/T available
- Low-power mode
- (30) flash patterns
- 12 Vdc
- LED Traffic Clearing Light (TCL) available
- Black or Clear bulkheads available
- Five-year warranty
Features
Federal Signal Navigator® is a linear, high-profile LED fire/police light bar that offers first responders a unique choice of using LED reflectors and LED rotators in one platform. Designed to fit the needs of multiple agencies, the Navigator options and overall flexibility can be used on fire apparatus, command/fleet vehicles, or police cars.
Solaris® LED emergency light bar reflector offers state-of-the art technology to first responders. Federal Signal’s exclusive Solaris® LED Rotating Reflectors (SLR) and QuadraFlare® reflectors are engineered to significantly increase off-axis warning and maximize the LED light source to eliminate dark spots for a true 360-degree light coverage.
SpectraLux® multi-color LED technology has the ability to flash two LED colors while in operation. LED fire/police light bar color options are available in Red, Blue, Amber, White, and Green. Upon White mode activation, Navigator emergency light bars provide an impressive flood capability to light up an emergency scene. Navigator emergency light bars offer a front and rear light bar cut-off feature for enhanced functionality and safety.
Navigator is available in 10", 18", 25", 45", 53", 60", 73", and 87" lengths for a consistent look across an entire fleet of vehicles. The 45", 53", and 60" are also available in discrete or serial variations.
In addition to standard model configurations, Navigator emergency light bars are also available in custom configurations. Custom configurations allow the user the ability to mix SLR, QuadraFlare, and TCL modules.
TCL produces 250+ ft of directional light to the front of the emergency vehicle and is directed at the driver’s rear view mirror warning them of an emergency vehicle. In addition, the SignalMaster™ directional warning option is available for the 45", 53", and 60" models to direct traffic approaching the rear of an emergency vehicle.
FS Technologies
SKU Specifications
| SKU | Operating Current | Max Current | Standby Current | Input Voltage | Operating Temperature | Number of Flash Patterns | LED Count | LED Colors | Dome Colors | Harness/Connection Type | Harness Length | Mount | Approvals | Color Option | Length | Width | Height | Ship Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NVG87D-NFPA22 | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red/White | Clear | N/A | N/A | 4-inch Riser | SAE J845 Class 1,NFPA 1901,CCR Title 13 | N/A | 86.9 in (220.6 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG87D-NFPA20 | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red/White | Clear | N/A | N/A | 4-inch Riser | SAE J845 Class 1,NFPA 1901,CCR Title 13 | N/A | 86.9 in (220.6 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG73D-NFPA24 | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red/White | Clear | N/A | N/A | 4-inch Riser | SAE J845 Class 1,NFPA 1901,CCR Title 13 | N/A | 73.0 in (185.4 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG73D-NFPA23 | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red | Clear | N/A | N/A | 4-inch Riser | SAE J845 Class 1,NFPA 1901,CCR Title 13 | N/A | 73.0 in (185.4 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG73D-NFPA22 | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red/White | Clear | N/A | N/A | 4-inch Riser | SAE J845 Class 1,NFPA 1901,CCR Title 13 | N/A | 73.0 in (185.4 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG73D-NFPA21 | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red/White | Clear | N/A | N/A | 4-inch Riser | SAE J845 Class 1,NFPA 1901,CCR Title 13 | N/A | 73.0 in (185.4 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG73D-NFPA20 | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red/White | Clear | N/A | N/A | 4-inch Riser | SAE J845 Class 1,NFPA 1901,CCR Title 13 | N/A | 73.0 in (185.4 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG60D-NFPA22 | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red/White | Clear | N/A | N/A | 4-inch Riser | SAE J845 Class 1,NFPA 1901,CCR Title 13 | Dual-color | 59.2 in (150.2 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG60D-NFPA21 | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red/White | Clear | N/A | N/A | 4-inch Riser | SAE J845 Class 1,NFPA 1901,CCR Title 13 | Dual-color | 59.2 in (150.2 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG60D-NFPA20 | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red/White | Clear | N/A | N/A | 4-inch Riser | SAE J845 Class 1,NFPA 1901,CCR Title 13 | Dual-color | 59.2 in (150.2 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG53Z-NFPA21 | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red/White | Clear | N/A | N/A | Hook | SAE J845 Class 1,NFPA 1901,CCR Title 13 | Dual-color | 52.5 in (133.4 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG53Z-NFPA20 | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red/White | Clear | N/A | N/A | Hook | SAE J845 Class 1,NFPA 1901,CCR Title 13 | Dual-color | 52.5 in (133.4 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG45Z-NFPA21 | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red/White | Clear | N/A | N/A | Hook | SAE J845 Class 1,NFPA 1901,CCR Title 13 | Dual-color | 45.3 in (115.1 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG45Z-NFPA20 | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red/White | Clear | N/A | N/A | Hook | SAE J845 Class 1,NFPA 1901,CCR Title 13 | Dual-color | 45.3 in (115.1 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG25D-NFPA21 | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red | Clear | N/A | N/A | 4-inch Riser | SAE J845 Class 1,NFPA 1901,CCR Title 13 | Single-color | 24.8 in (63.0 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG25D-NFPA20-P | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red/White | Clear | N/A | N/A | 4-inch Riser | SAE J845 Class 1,NFPA 1901,CCR Title 13 | Dual-color | 24.8 in (63.0 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG25D-NFPA20-D | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red/White | Clear | N/A | N/A | 4-inch Riser | SAE J845 Class 1,NFPA 1901,CCR Title 13 | Dual-color | 24.8 in (63.0 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG18D-NFPA20-P | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red/White | Clear | N/A | N/A | 4-inch Riser | SAE J845 Class 1,NFPA 1901,CCR Title 13 | Dual-color | 17.6 in (44.7 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG18D-NFPA20-D | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red/White | Clear | N/A | N/A | 4-inch Riser | SAE J845 Class 1,NFPA 1901,CCR Title 13 | Dual-color | 17.6 in (44.7 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG10D-NFPA22-P | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red | Clear | N/A | N/A | Flat | SAE J845 Class 1,NFPA 1901,CCR Title 13 | Single-color | 10.0 in (25.4 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG10D-NFPA22-D | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red | Clear | N/A | N/A | Flat | SAE J845 Class 1,NFPA 1901,CCR Title 13 | Single-color | 10.0 in (25.4 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG10D-NFPA20 | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red | Clear | N/A | N/A | Flat | SAE J845 Class 1,NFPA 1901,CCR Title 13 | Single-color | 10.0 in (25.4 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG10D-NFPA21-P | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red | Clear | N/A | N/A | Flat | SAE J845 Class 1,NFPA 1901,CCR Title 13 | Single-color | 10.0 in (25.4 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
| NVG10D-NFPA21-D | 1.5 A per QuadraFlare Head / 2.5 A per SLR Rotator | N/A | N/A | N/A | -40˚ to + 176˚ F (-40˚ to + 80˚ C) | 30 | N/A | Red | Clear | N/A | N/A | Flat | SAE J845 Class 1,NFPA 1901,CCR Title 13 | Single-color | 10.0 in (25.4 cm) | 12.4 in (31.5 cm) | 4.4 in (11.2 cm) | N/A |
Videos
Federal Signal Navigator Lightbar Product Video
Accessories
Collapse Content| Product # | Description |
|---|---|
| 605012 | Two-channel relay module; (2) 7.5 A outputs |
