Vision® SLR
- Unique non-linear, V-shape light bar
- Available in 46", 53", and 60" lengths
- Amber, Blue, Green, Red, and White
- Single-, dual-, tri-, and quad-color combinations available
- Left-flood, right-flood, full-flood, alley lights available
- (15) flash patterns
- 12 Vdc
- Aerial view allows emergency vehicle to be seen
- Jogging capability allows user to adjust rotator illuminating an area
- Individual pod replacement for easy service
- Five-year warranty
Features

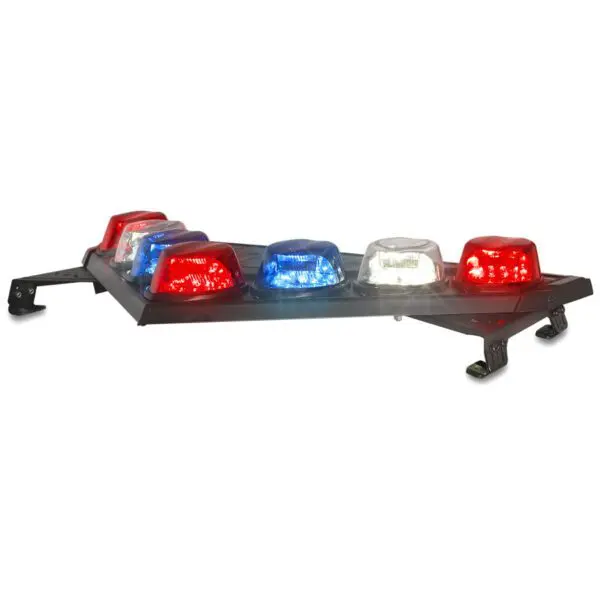

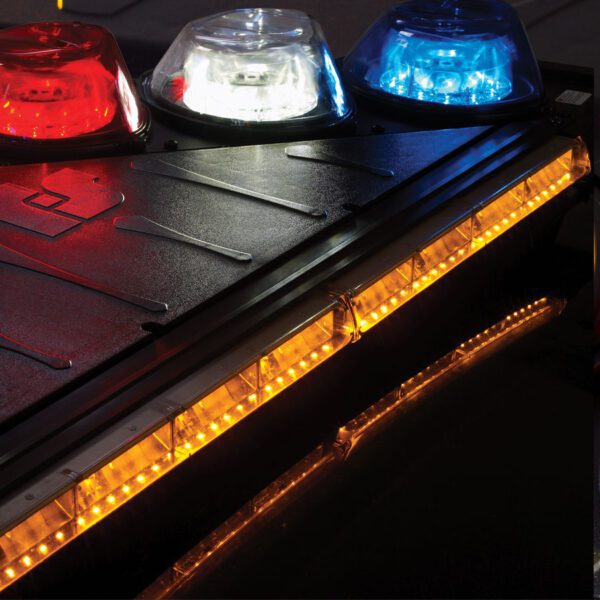

Police and Fire Vision® SLR Light Bar
Federal Signal’s Vision® SLR light bar is the ultimate solution for law enforcement and firefighters looking to equip their fleet of emergency vehicles with a top-tier lighting solution. Distinguished by its non-linear shape and technology, the Vision® SLR features a unique V-shape design combined with Solaris® LED reflectors to ensure 360-degree light output, which is crucial for clearing intersections swiftly and safely.
The Vision® SLR light bar also incorporates SpectraLux® multicolor LED technology enabling a single light to switch between colors, ensuring compliance with NFPA standards. For aerial views, individual Smart Pods feature two LEDs that project light upward for an easy aerial location of emergency scenes.
Full Vision SLR light bars feature the FS Convergence Network, enabling a plug-and-play connection, reducing extensive wires for quicker installation time. The Vision SLR can be operated with a Vision controller or serial interface module.
Split Vision® SLR and the 3-Pod Vision® SLR models offer a similar installation as the Vision® SLR and provide a unified lighting system for large apparatus.
Pod replacement is as easy as one-two-three. Loosen one screw, twist the pod, and unplug. Ideal for large fleets, the Vision SLR can be serviced in minutes without removing the light bar from the vehicle.
Federal Signal has built a solid reputation for crafting top-tier safety products, a legacy that is complemented by our steadfast dedication to exceptional customer service and continuous innovation. The Vision® SLR lightbar for police and fire services stands as a shining example of this commitment. Contact us today to learn more about the Vision® SLR light bar and other police and fire safety solutions.
FS Technologies
SKU Specifications
| SKU | Operating Current | Max Current | Standby Current | Input Voltage | Operating Temperature | Number of Flash Patterns | LED Count | LED Colors | Dome Colors | Harness/Connection Type | Harness Length | Mount | Approvals | Color Option | Length | Width | Height | Ship Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VSLR60S-NFPA4 | 25 A @ 12 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | N/A | N/A | Red/White | Clear | Serial | N/A | Hook | NFPA 1901,CCR Title 13,IP65 | Multi-color | 59.3 in (150.6 cm) | 33.2 in (84.3 cm) | 5.8 in (14.7 cm) | 67.50 |
| VSLR60S-NFPA3 | 25 A @ 12 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | N/A | N/A | Red/White | Clear | Serial | N/A | Hook | NFPA 1901,CCR Title 13,IP65 | Multi-color | 59.3 in (150.6 cm) | 33.2 in (84.3 cm) | 5.8 in (14.7 cm) | 67.50 |
| VSLR60S-NFPA2 | 25 A @ 12 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | N/A | N/A | Red/White | Clear,Red | Serial | N/A | Hook | NFPA 1901,CCR Title 13,IP65 | Multi-color | 59.3 in (150.6 cm) | 33.2 in (84.3 cm) | 5.8 in (14.7 cm) | 67.50 |
| VSLR60S-NFPA1 | 25 A @ 12 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | N/A | N/A | Red/White | Clear,Red | Serial | N/A | Hook | NFPA 1901,CCR Title 13,IP65 | Multi-color | 59.3 in (150.6 cm) | 33.2 in (84.3 cm) | 5.8 in (14.7 cm) | 67.50 |
| VSLR53S-NFPA4 | 25 A @ 12 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | N/A | N/A | Red/White | Clear | Serial | N/A | Hook | NFPA 1901,CCR Title 13,IP65 | Multi-color | 52.3 in (132.8 cm) | 30.2 in (76.7 cm) | 5.8 in (14.7 cm) | 64.40 |
| VSLR53S-NFPA3 | 25 A @ 12 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | N/A | N/A | Red/White | Clear | Serial | N/A | Hook | NFPA 1901,CCR Title 13,IP65 | Multi-color | 52.3 in (132.8 cm) | 30.2 in (76.7 cm) | 5.8 in (14.7 cm) | 64.40 |
| VSLR53S-NFPA2 | 25 A @ 12 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | N/A | N/A | Red/White | Clear,Red | Serial | N/A | Hook | NFPA 1901,CCR Title 13,IP65 | Multi-color | 52.3 in (132.8 cm) | 30.2 in (76.7 cm) | 5.8 in (14.7 cm) | 64.40 |
| VSLR53S-NFPA1 | 25 A @ 12 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | N/A | N/A | Red/White | Clear,Red | Serial | N/A | Hook | NFPA 1901,CCR Title 13,IP65 | Multi-color | 52.3 in (132.8 cm) | 30.2 in (76.7 cm) | 5.8 in (14.7 cm) | 64.40 |
| VSLR46S-NFPA4 | 25 A @ 12 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | N/A | N/A | Red/White | Clear | Serial | N/A | Hook | NFPA 1901,CCR Title 13,IP65 | Multi-color | 45.4 in (115.3 cm) | 27.9 in (70.9 cm) | 5.8 in (14.7 cm) | 59.30 |
| VSLR46S-NFPA3 | 25 A @ 12 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | N/A | N/A | Red/White | Clear | Serial | N/A | Hook | NFPA 1901,CCR Title 13,IP65 | Multi-color | 45.4 in (115.3 cm) | 27.9 in (70.9 cm) | 5.8 in (14.7 cm) | 59.30 |
| VSLR46S-NFPA2 | 25 A @ 12 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | N/A | N/A | Red/White | Clear,Red | Serial | N/A | Hook | NFPA 1901,CCR Title 13,IP65 | Multi-color | 45.4 in (115.3 cm) | 27.9 in (70.9 cm) | 5.8 in (14.7 cm) | 59.30 |
| VSLR46S-NFPA1 | 25 A @ 12 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | N/A | N/A | Red/White | Clear,Red | Serial | N/A | Hook | NFPA 1901,CCR Title 13,IP65 | Multi-color | 45.4 in (115.3 cm) | 27.9 in (70.9 cm) | 5.8 in (14.7 cm) | 59.30 |
| VSLR46S-2664009 | 25 A @ 12 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | N/A | N/A | Red/Blue/White | Clear | Serial | N/A | Hook | NFPA 1901,CCR Title 13,IP65 | Multi-color | 45.4 in (115.3 cm) | 27.9 in (70.9 cm) | 5.8 in (14.7 cm) | 59.30 |
| VSLR46S-2664014 | 25 A @ 12 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | N/A | N/A | Red/Blue/White | Clear | Serial | N/A | Hook | NFPA 1901,CCR Title 13,IP65 | Multi-color | 45.4 in (115.3 cm) | 27.9 in (70.9 cm) | 5.8 in (14.7 cm) | 59.30 |
| VSLR46-2664017 | 25 A @ 12 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | N/A | N/A | Red/Blue/White | Blue,Clear,Red | Serial | N/A | Hook | NFPA 1901,CCR Title 13,IP65 | Multi-color | 45.4 in (115.3 cm) | 27.9 in (70.9 cm) | 5.8 in (14.7 cm) | 59.30 |
| VSLR46-2664023 | 25 A @ 12 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | N/A | N/A | Red/Blue/White | Blue,Clear,Red | Serial | N/A | Hook | NFPA 1901,CCR Title 13,IP65 | Multi-color | 45.4 in (115.3 cm) | 27.9 in (70.9 cm) | 5.8 in (14.7 cm) | 59.30 |
