Fire/EMS Vision® SLR

Share This

Exclusive to Federal Signal, SpectraLux™ multicolor LED technology provides the ability for a single light source to change color while in motion. Individual Smart Pods can be programmed to flash between red, blue, amber or white

Remove a screw, twist the pod to remove from base and unplug the connection from the lightbar.

Exclusive to Federal Signal, SpectraLux provides the ability for a LED light head to change colors. Indiviudal Valor lightheads can flash between Red, Blue, Amber or White

Market

Distinctive “V-Shape” and SLR technology provides superior optical warning at critical intersection angles
Powerful Flood lighting feature provides significant tactical benefits
“Jogging” capability
“Aerial view” feature improves ability to see vehicle from a helicopter
Optional SignalMaster™ directional light
LEDs offered in Amber, Blue, Green, Red and White
Top-dome colors are offered in Amber, Blue, Clear, Green and Red
Available in 46-, 53-, and 60-inch lengths
Five-year LED warranty

Approvals:

NFPA 1901
SAE J845 Class 1 (Amber, Blue, Red, White)

Configure a Lightbar

Where To Buy Request Information

Download Data Sheet

Features
Specifications
Resources
Videos

Features

Click to download the Risk Reduction White Paper for Emergency Response

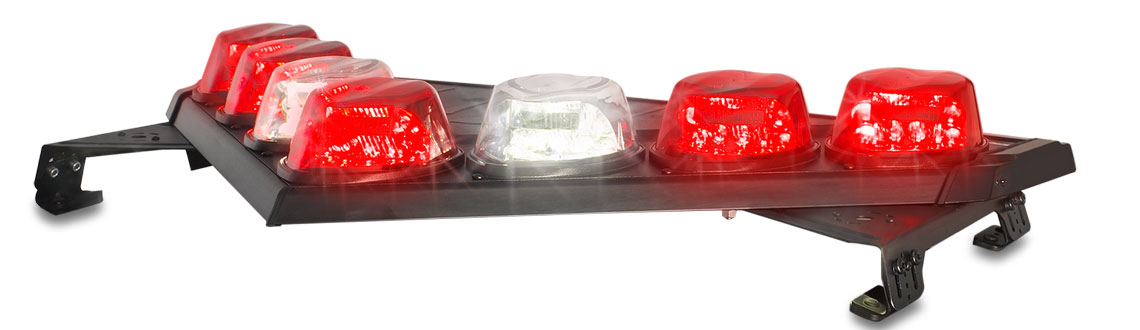

Redesigned from the inside out, experience the new Vision® SLR light bar. The distinct non-linear shape and exclusive SLR (Solaris LED Rotator) provide a maximum of 360-degrees of light output not achieved by a linear light bar. Vision SLR maximizes light output to help clear the roadway in critical traffic intersections. It is obvious as soon as you see the Vision SLR that it was engineered for safety.

Vision® SLR is available with Federal Signal's new SpectraLux® multicolor LED technology. SpectraLux® enables a single light source to change from any color combination of Red, Blue, Amber or White. This allows for NFPA compliance as white light in route may change to Red or Blue when park is engaged. For aerial views, each reflector features two LEDs that project light upward for an easy aerial location of emergency scenes.

Full Vision SLR light bars feature the FS Convergence Network that enables for "plug-n-play" connection reducing extensive wires for quicker installation time. The Vision SLR can be operated with Federal Signal's SmartSiren® Platinum amp/light controller, Vision controller or serial interface module.

Split Vision SLR and 3-Pod Vision SLR models have designed with discrete wire harness for familiar installation on large apparatus.

Pod replacement is as easy as one-two-three. Simply loosen one screw, twist the pod and unplug. Ideal for large fleets, the Vision SLR can be serviced in minutes without removing the light bar from the vehicle. Seeing is believing. Contact your representative today.

Specifications

Approvals	SAE J845
	SAE 1113/41 RFI
	NFPA1901
	Max Current Draw* - 15.4 A - SignalMaster, HotFoot and Alley not included
	*Max Amperage in steady burn mode for all light heads
Voltage	12VDC Operating
Operating Temperature Range	-30°C to +65°C
Dim. (H x L x D):	*VSLR46 - 5.8 in (115.3 cm) x 45.4 in (14.7 cm) x 27.9 in (70.9 cm)
	*VSLR53 - 5.8 in (132.8 cm) x 52.3 in (14.7 cm) x 30.2 in (76.7 cm)
	*VSLR60 - 5.8 in (150.6 cm) x 59.3 in (14.7 cm) x 33.2 in (84.3 cm)
	*VSLR46 - 5.8 in (115.3 cm) x 45.4 in (14.7 cm) x 27.9 in (70.9 cm)
	*VSLR53 - 5.8 in (132.8 cm) x 52.3 in (14.7 cm) x 30.2 in (76.7 cm)
	*VSLR60 - 5.8 in x 59.3 in x 33.2 in (150.6 cm x 14.7 cm x 84.3 cm)
	VSLR8 - 4.6 in X 26.8 in X 26.5 in (11.7 cm x 37.3 cm x 67.3 cm) (per half, less mount)
Blank Specification	VSLR6 - 4.6 in X 21.1 in X 21.7 in (11.7 cm x 53.6 cm x 55.1 cm) (per half, less mount)
	VSLR3 - 4.6 in X 22.4 in X 17.8 in (11.7 cm x 56.9 cm x 45.2 cm) (less mount)
	*Note- Alley Caps add 1.0 in (2.5 cm) to Length
Shipping Weight	*VSLR46 - 59.3 lbs (26.9 kg)
	*VSLR53 - 64.4 lbs (29.2 kg)
	*VSLR60 - 67.5 lbs (30.6 kg)
	VSLR8 - Consists of 2 cartons, each weighing 30.0 lbs (13.5 kg) for a total weight of 60 lbs (27.0 kg) VSLR6 - Consists of 2 cartons, each weighing 23.0 lbs (10.35 kg) for a total weight of 46.0 lbs (20.7 kg)
Blank Specification	VSLR3 - 25.0 lbs (11.34 kg) *Note- With SignalMaster and standard mounting feet.
