XSM2C dual head model with accessory plug
XSM2 dual head model with wire leads
XSM1 - Single head model with wire leads
XSM1 single head model with wire leads

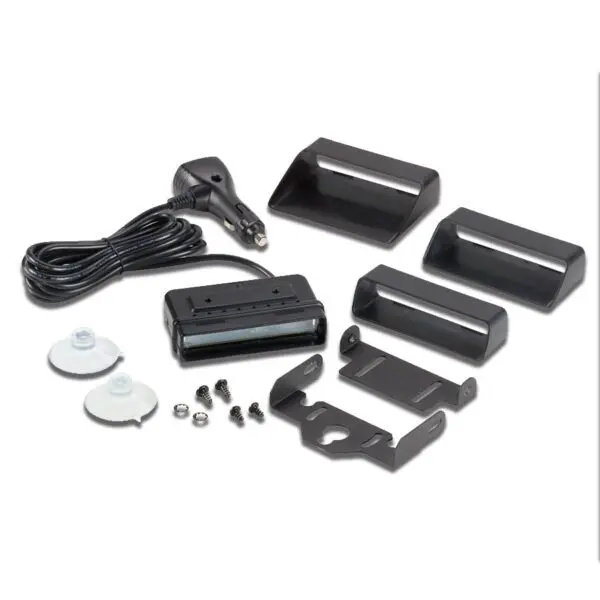

Each model includes light head, two suction cups, bail and pivot brackets, mounting hardware and three different length snap-on visors.
Each model includes light head, two suction cups, bail and pivot brackets, mounting hardware and three different length snap-on visors.
- Solaris® LED reflector technology for better optical efficiency and superior off-axis warning
- SpectraLux® multicolor LED technology in combinations of Amber, Blue, Green, Red, and White
- Incorporates FSLink® shared flash pattern set which provides the ability to synchronize with other FSLink products
- XStream models can be set to a steady burn pattern, and then programmed to synchronize with other FSJoin products
- FSJoin™ enables the synchronization of functions, operation, and flash patterns across multiple warning devices and multiple vehicles
- Each light head includes three colors with (6) LEDs of each color [(18) LEDs total)]
- Low-profile design
- Available in single- or dual-head models
- Black polycarbonate housing
- Each model features two recessed buttons, one to change flash pattern and other for color mode
- (25) Flash patterns including random and steady; (10) color modes
- Versatile mounting brackets and three different length snap-on flash guards included
- Choice of accessory plug or wired models
- Accessory plug models include two switches for on/off and steady-burn
- Five-year warranty
Features
Approvals
- SAE J845 Class 1
- SAE J595 Class 1
- CCR Title 13
Built-in Versatility

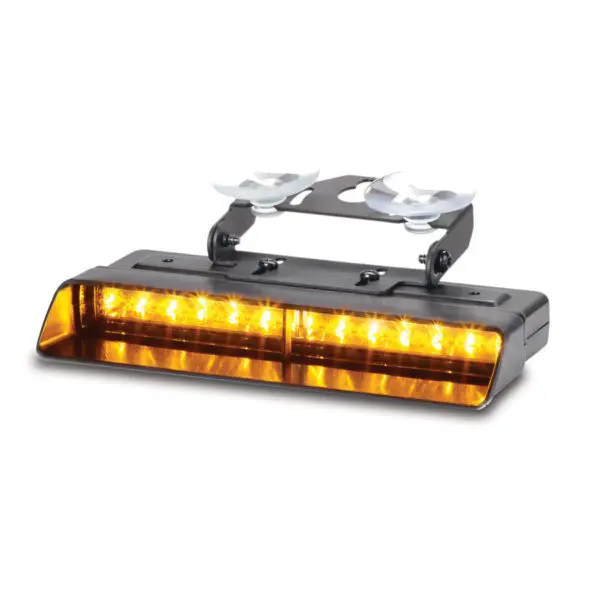

XStream® is an interior mount LED warning light that can be installed almost anywhere inside a police car, fire commander and volunteer fire vehicle, or work truck. XStream is available in single- or dual-head configurations and with accessory plug or wire leads that allow for synchronization. Ideal for dash/deck, headliner, and window mount applications, each model includes a light head, (2) suction cups, bail and pivot brackets, mounting hardware and three different length snap-on flash guards, making installation quick and versatile.
Every model is built with Federal Signal’s Solaris® LED reflector for superior optical performance. In addition, SpectraLux® multicolor LED technology provides the ability for a LED light head to change color and operate as a single, dual, or tri-color light head through user-selected color modes.
Easy Push-Button Flash Pattern and Color Mode Selection
XStream warning lights come equipped with (25) flash patterns and (10) color modes. Flash patterns and color modes can be changed simply with two recessed buttons included on each model. Wired units use an advanced five-wire technology that coordinates flash patterns between up to eight lights at once. Accessory plug models are simple to transfer from vehicle to vehicle and include two switches for on/off and White steady-burn.
Specifications
| Single-head | Dual-Head | |
| Operating Voltage | 12 Vdc | |
| Current Draw | 0.8 A (Steady White) | 1.5 A (Steady White) |
| Operating Temp | -40˚ to +176˚ F (-40˚ to +80˚ C) | |
| Physical Specifications (Light Head) | ||
| Length | 3.9 in (9.9 cm) | 7.3 in (18.5 cm) |
| Width | 2.2 in (5.6 cm) | |
| Height | 1.0 in (2.5 cm) | |
| Ship Weight | ||
| 0.6 lb (0.3 kg) | 1.0 lb (0.5 kg) | |
Resources
Marketing Updates
Product Manuals
Videos
Ordering Info
Model Types
| MODEL | DESCRIPTION |
|---|---|
| XSM1-BRW-US | Blue/Red/White, Single head models with wire leads |
| XSM1-WAG-US | White/Amber/Green, Single head models with wire leads |
| XSM1-BRA-US | Blue/Red/Amber, Single head models with wire leads |
| XSM1-BWA-US | Blue/White/Amber, Single head models with wire leads |
| XSM1-RWA-US | Red/White/Amber |
| XSM2-BRW-US | Blue/Red/White - Blue/Red/White, Dual head models with wire leads |
| XSM2-WAG-US | White/Amber/Green - White/Amber/Green, Dual head models with wire leads |
| XSM2-BRA-US | Blue/Red/Amber - Blue/Red/Amber, Dual head models with wire leads |
| XSM2-BWA-US | Blue/White/Amber - Blue/White/Amber, Dual head models with wire leads |
| XSM2-RWA-US | Red/White/Amber-Red/White/Amber |
| XSM1C-BRW-US | Blue/Red/White, Single head models with accessory plug |
| XSM1C-WAG-US | White/Amber/Green, Single head models with accessory plug |
| XSM1C-BWA-US | Blue/White/Amber, Single head models with accessory plug |
| XSM1C-RWA-US | Single head model with accessory plug, Red/White/Amber |
| XSM2C-BRW-US | Blue/Red/White - Blue/Red/White, Dual head models with accessory plug |
| XSM2C-WAG-US | White/Amber/Green - White/Amber/Green, Dual head models with accessory plug |
| XSM2C-BWA-US | Blue/White/Amber - Blue/White/Amber, Dual head models with accessory plug |
| XSM2C-RWA-US | Dual head model with accessory plug, Red/White/Amber |
Accessories
| PRODUCT # | DESCRIPTION |
|---|---|
| XSMBKT01 | Visor mount kit for use with single- or dual-head models |
| XSMBKT02 | Adjustable, swivel mount for single- or dual-head models |
| XSMBKT03 | Headliner mount bracket for single- or dual-head models |
| XSMBKT07 | Visor mount kit for use with (1) single- or dual-head XStream and (2) cameras (forward and rear facing), Dodge Charger, 2011-2023 |
| XSMBKT10 | Visor mount kit for use with (1) single- or dual-head XStream and (2) cameras (forward and rear facing), Ford F-150, 2015-2022, Ford F-250/350/450/550 Super Duty, 2017-2022, Ford Expedition 2018-2022, Ford Lightning, 2022-2023 |
| XSMBKT11 | Visor mount kit for use with (1) single- or dual-head XStream and (2) cameras (forward and rear facing), Ford Police Interceptor Utility, 2020-2023 |
| XSMBKT12 | Visor mount kit for use with (1) single- or dual-head XStream and (2) cameras (forward and rear facing), Dodge Durango, 2011-2023 |
| XSMBKT13 | Rear window mount kit for (2) single- or dual- head XStream models, Ford Ranger, 2019-2020 |
| XSMBKT14 | Visor mount kit for use with (1) single- or dual-head XStream, with mounting holes for front and rear facing cameras, Chevrolet Tahoe, 2021-2022 |
| Z205003 | EXTRUSION RUBBER 27.25 IN |
