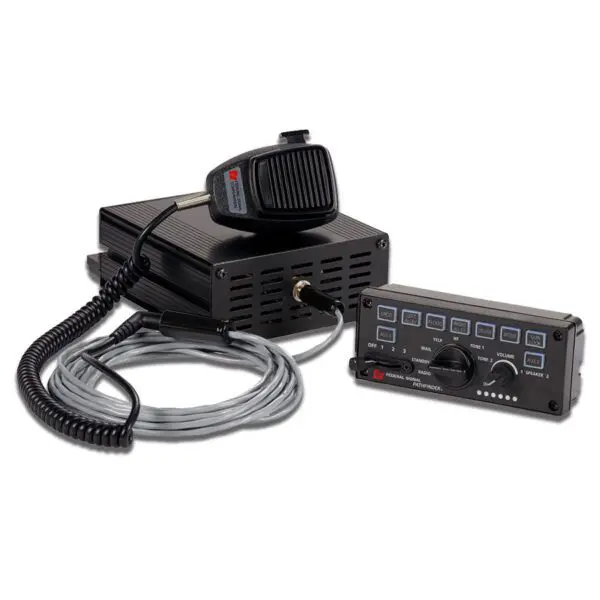

Pathfinder® PF200 Siren/Light Controller
- 100/200 W siren and light controller with PA and noise-canceling microphone
- Integrated dual-tone capability when used with (2) speakers
- Integrated Rumbler® traffic clearing capability
- Optional FS Vehicle Integration/On-Board Diagnostics Integration (OBDII)
- Library of selectable siren tones includes SmartSiren®, Unitrol™, PA300, and Powercall siren tones
- (7) programmable inputs and (12) programmable solid-state relay outputs
- Convergence Network Configuration Software allows for easy customization of siren and light controls
- (2) FS Convergence Network ports
- Standard voice messages are available in English, Spanish, and French Canadian to broadcast alerts. Custom voice messages are available for an additional fee
- Five-year warranty
Features
Pathfinder® Police and Fire Siren and Light Controller
Pathfinder® is a versatile and compact lights and siren controller that offers multiple control options, including self-contained units, remote surface-mount control heads, and handheld control heads. This lights and siren controller supports optional integration with On-Board Diagnostics (OBDII). This light and siren controller integrates with the vehicle events such as door opening, headlight, brake, speed, park, etc., allowing officers to focus on the task at hand. Additionally, it boasts a range of advanced features, such as multi-tone capability and integrated Rumbler® technology for effective traffic clearing.
An optional accessory to your Pathfinder® siren, the On Scene Sync Module uses a GPS signal to maintain timing between vehicles, providing the capability to synchronize warning lights and voice messages to unify the visual and audible warning of multi-vehicle response. An ambient light sensor is also included in the On Scene Sync Module to auto-adjust warning lights.
Another option is the Perimeter Breach Warning (PBW) feature. PBW is a vehicle radar detection system that enhances officer safety giving them increased situational awareness around their vehicle. PBW is composed of six sensors discretely mounted around the vehicle that work with the Pathfinder and the vehicle’s OBII system.
The Convergence Network Configuration Software provides extensive customization options. This software allows for seamless programming of a single vehicle or an entire fleet directly from your laptop. To help police officers create a safer and more productive environment, the Pathfinder siren and light controller is here to deliver.
Federal Signal has spent decades innovating the safety solutions you need to protect your team and community. Contact us to learn more about the Pathfinder® or other safety products we’ve designed to support your fleet.
FS Technologies
Pathfinder uses Convergence Network Configuration Software for customization.
SKU Specifications
| SKU | Operating Current | Standby Current | Input Voltage | Operating Temperature | Audio Output Power | Sound Output | Output Type | Input Type | Length | Width | Height | Ship Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PF200AMP | N/A | < 0.1 A | N/A | -40˚ to +176˚ F (-40˚ to +80˚C) | 200 W | N/A | N/A | N/A | 7.0 in (17.8 cm) | 6.0 in (15.2 cm) | 2.5 in (6.4 cm) | 4.35 |
| PF200S4 | N/A | < 0.1 A | N/A | -40˚ to +176˚ F (-40˚ to +80˚C) | 200 W | N/A | N/A | N/A | 1.0 in (2.5 cm | 3.5 in (8.9 cm | 1.6 in (4.1 cm) | 5.90 |
| PF200S6 | N/A | < 0.1 A | N/A | -40˚ to +176˚ F (-40˚ to +80˚C) | 200 W | N/A | N/A | N/A | 1.1 in (2.8 cm) | 2.6 in (6.6 cm) | 2.8 in (7.1 cm) | 5.90 |
| PF200S17B | N/A | < 0.1 A | N/A | -40˚ to +176˚ F (-40˚ to +80˚C) | 200 W | N/A | N/A | N/A | 1.4 in (3.6 cm) | 6.8 in (17.3 cm) | 3.3 in (8.4 cm) | 6.00 |
| PF200H | N/A | < 0.1 A | N/A | -40˚ to +176˚ F (-40˚ to +80˚C) | 200 W | N/A | N/A | N/A | 1.3 in (3.3 cm) | 2.5 in (6.4 cm) | 6.0 in (15.2 cm) | 5.00 |
| PF200R | N/A | < 0.1 A | N/A | -40˚ to +176˚ F (-40˚ to +80˚C) | 200 W | N/A | N/A | N/A | 1.5 in (3.5 cm) | 6.0 in (15.2 cm) | 2.5 in (6.4 cm) | 6.00 |
| PF200 | N/A | < 0.1 A | N/A | -40˚ to +176˚ F (-40˚ to +80˚C) | 200 W | N/A | N/A | N/A | 8.4 in (21.3 cm | 6.0 in (15.2 cm) | 2.5 in (6.4 cm) | 4.70 |
Videos
Pathfinder Lights and Siren Controller
Pathfinder Lights and Siren Controller
Pathfinder Power Distribution and Expansion Modules
Pathfinder OBD Integration
Pathfinder Voice Messages
Pathfinder Public Address
Pathfinder Rumbler and Dual-Tone Capability
Pathfinder PF200 - PF200R: Replacing a Siren Knob Video
Pathfinder® On-Scene Sync Module
Accessories
Collapse Content| Product # | Description |
|---|---|
| PFSYNC-1 | On-scene sync module |
| OBDCABLE6-1 | 6-ft OBDII interface cable, for use on 2018-2020 Chevrolet Tahoe, 2013-2019 Ford Police Interceptor Utility, 2018-2019 Ford F-150, 2018-2021 Chevrolet Silverado |
| OBDCABLE6-2 | 6-ft OBDII interface cable, for use on 2020-2024 Ford Police Interceptor Utility |
| OBDCABLE6-3 | 6-ft OBDII interface cable, for use on 2020-2021 Ford Expedition, 2020 Ford F-150, and 2020-2022 Ford F-250/F-350/F-450/F-550 (Models equipped with 4" or 8" entertainment screen only) |
| OBDCABLE6-DGCAN | 6-ft OBDII interface cable, for use on 2018-2024 Dodge Charger Pursuit and 2018-2023 Dodge Durango, and 2018-2023 Dodge Ram 1500 |
| OBDCABLE25-1 | 25-ft OBDII interface cable, for use on 2018-2020 Chevrolet Tahoe, 2013-2019 Ford Police Interceptor Utility, 2018-2019 Ford F-150, 2018-2021 Chevrolet Silverado |
| OBDCABLE25-2 | 25-ft OBDII interface cable, for use on 2020-2024 Ford Police Interceptor Utility |
| OBDCABLE25-3 | 25-ft OBDII interface cable, for use on 2020-2021 Ford Expedition, 2020 Ford F-150, and 2020-2022 Ford F-250/F-350/F-450/F-550 (Models equipped with 4" or 8" entertainment screen only) |
| OBDCABLE25-DGCAN | 25-ft OBDII interface cable, for use on 2018-2024 Dodge Charger Pursuit and 2018-2023 Dodge Durango, and 2018-2023 Dodge Ram 1500 |
| OBDCABLE8-GMCAN | 8-ft OBDII interface cable, for use on 2021-2024 Chevrolet Tahoe |
| OBDCABLE20-GMCAN | 20-ft OBDII interface cable, for use on 2021-2024 Chevrolet Tahoe |
| OBDCABLE8-4 | 8-ft OBDll interface cable, for use on 2021-2024 Ford Mustang Mach-E and 2022-2024 Ford F-150 Lightning |
| PFPDM-1 | Power Distribution Module, 100 A max load |
| OBDCABLE20-4 | 20-ft OBDll interface cable, for use on 2021-2024 Ford Mustang Mach-E and 2022-2024 Ford F-150 Lightning |
| EXPMOD24 | 24-Channel Expansion Module |
| EXPMOD-2 | Rear Expansion Module, (18) solid-state programmable relay outputs, (16) 7.5 A flashing outputs and (2) 20 A control outputs |
| EXPHARN01 | Rear taillight connection wire harness for use with rear expansion module, Dodge Charger Pursuit, 2015-2024 |
| EXPHARN03 | Rear taillight connection wire harness for use with rear expansion module, Ford Police Interceptor Utility, 2020-2024 |
| EXPHARN04 | Rear taillight and rear liftgate lighting connection wire harness for use rear expansion module, Dodge Durango, 2018-2023 |
| EXPHARN05 | Rear taillight connection wire harness for use with rear expansion module, Chevrolet Tahoe, 2021-2023 |
| RMK | Remote extension kit for ¼-inch jack microphone |
| PFSPLTR-4 | 4-to-1 splitter |
| PBW-SYSTEM | Perimeter Breach Warning System |
| PBWK-FPIU20 | Mounting Kit, Perimeter Breach Warning System, FPIU, 2020+ |
| OBDCABLE20-5 |
Warnings
Audible Equipment may produce LOUD sounds necessary to request the right-of-way. Audible equipment may cause hearing damage. Wear hearing protection. Refer to the Installation Manual or call 800/433-9132 for further instructions.
Important Warning for Police Boats and Fire Rescue Boats
It has come to our attention that police boat and fire rescue boat sirens and speakers may subject persons operating those craft to sound pressure levels that can cause permanent hearing loss. We recommend that speakers be located as far forward on the boat as possible, as recommended in the SAE Recommended Practice J1849 “Emergency Vehicle Sirens”. However, unprotected exposures of a sufficient duration to properly located siren speakers can still create a risk of hearing loss.
It is our recommendation that your siren speakers should be relocated and persons operating these craft should wear hearing protection when using the siren system.
Failure to comply with these recommendations may result in temporary or permanent hearing loss to operators and passengers of these vehicles.
