NightSpire® LED SpotLight
- Adjustable spot-to-flood light
- 360 degrees of continuous rotation
- 130 degrees of vertical tilt
- Wireless Bluetooth® or dash-mounted, ignition-powered, wireless controller with backlit buttons; each includes (2) memory controls and pairs with up to (3) units
- Hard-coated dome for UV protection, improved optical clarity, and environmental durability
- 12 Vdc
- Permanent and magnet mount bases available
- Five-year warranty
Features

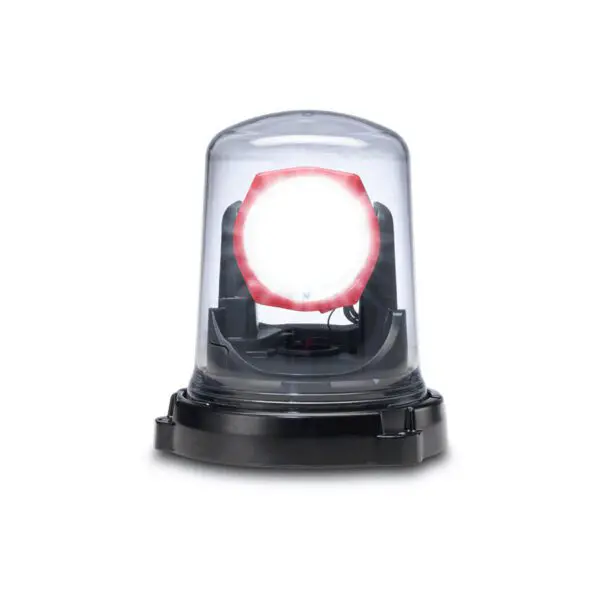

NightSpire® LED Emergency Spotlight
NightSpire® is a fire apparatus LED scene light with an adjustable spotlight and floodlight capabilities. This fire spotlight can be controlled with either a battery-powered or ignition-powered Bluetooth wireless controller. Engineered with a digitally controlled lens, NightSpire fire truck lights adjust from 50 degrees of LED floodlight to a pinpoint spotlight at 4 degrees. This technology allows for light versatility and decreases maintenance due to a lack of moving parts within the lens. In addition, the emergency spotlight offers 360-degree continuous rotation and 130-degree vertical tilt.
NightSpire follows the mounting footprint of Federal Signal’s flagship beacon – the Spire®. Like the Spire, NightSpire comes in a permanent and magnet mount base. In addition, the fire LED scene light is rated IP69K for maximum protection against dust and water, including pressure-wash resistance for faster fire truck cleaning turnarounds.
The NightSpire fire spotlight also features a Bluetooth wireless controller with an easy-to-grip design and tactile, pad-printed buttons. Each controller can pair with up to three lights, eliminating the need for multiple controllers. NightSpire’s dual memory control functions allow users to move the light beam to pre-programmed positions. The wireless controller’s backlit buttons are designed for easy operation in low-light conditions or while wearing gloves, improving usability in critical situations.
SKU Specifications
| SKU | Operating Current | Max Current | Input Voltage | Operating Temperature | LED Count | Lumens | Mount | Approvals | Length | Width | Height | Ship Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NS200-P | 2.5 A @ 12.8 Vdc | 3.25 A | N/A | -40˚ to +176˚F (-40˚ to +80˚C) | N/A | 3100 | Permanent/1-inch Pipe | IP69K | N/A | 6.0 in (15.2 cm) | 7.1 in (18.0 cm) | 3.50 |
| NS200-M | 2.5 A @ 12.8 Vdc | 3.25 A | N/A | -40˚ to +176˚F (-40˚ to +80˚C) | N/A | 3100 | Magnet | IP69K | N/A | 5.2 in (13.0 cm) | 6.9 in (17.6 cm) | 3.50 |
| NS200-DM-SB | 2.5 A @ 12.8 Vdc | 3.25 A | N/A | -40˚ to +176˚F (-40˚ to +80˚C) | N/A | 3100 | Permanent/1-inch Pipe | IP69K | N/A | 6.0 in (15.2 cm) | 7.1 in (18.0 cm) | 3.50 |
| NS200-P-SB | 2.5 A @ 12.8 Vdc | 3.25 A | N/A | -40˚ to +176˚F (-40˚ to +80˚C) | N/A | 3100 | Permanent/1-inch Pipe | IP69K | N/A | 6.0 in (15.2 cm) | 7.1 in (18.0 cm) | 3.50 |
| NS200-M-SB | 2.5 A @ 12.8 Vdc | 3.25 A | N/A | -40˚ to +176˚F (-40˚ to +80˚C) | N/A | 3100 | Magnet | IP69K | N/A | 5.2 in (13.0 cm) | 6.9 in (17.6 cm) | 3.50 |
| NS200-DM2-SB | 2.5 A @ 12.8 Vdc | 3.25 A | N/A | -40˚ to +176˚F (-40˚ to +80˚C) | N/A | 3100 | Permanent/1-inch Pipe | IP69K | N/A | 6.0 in (15.2 cm) | 7.1 in (18.0 cm) | 3.50 |
Videos
NightSpire Features Video
Accessories
Collapse Content| Product # | Description |
|---|---|
| 200NS-TALL | Branch guard for permanent mount models |
| Z864901329 | Bracket kit for mounting NightSpire® to Allegiant® Max/Integrity® |
| NSCTRL-BKT | Dash mount bracket for battery-powered Bluetooth wireless controller |
| HL15-NSBKT | Bracket kit for mounting NightSpire® to HighLighter® Elite |
| 200NS-ADPKT | Adaptor mount kit |
