Police/Fire MicroPulse® Ultra D-Pillar Lights
- D-Pillar warning light system
- System includes vacuum-formed vehicle-specific shrouds, MicroPulse Ultra (6) light heads, (2) shroud/bracket assemblies, (2) harnesses, and (1) 24-channel expansion module
- Tri-color models
- Full customization of flash patterns and auxiliary signals such as brake, reverse, and turn signals
- Multi-voltage, 12/24 Vdc
- Five-year warranty
Features

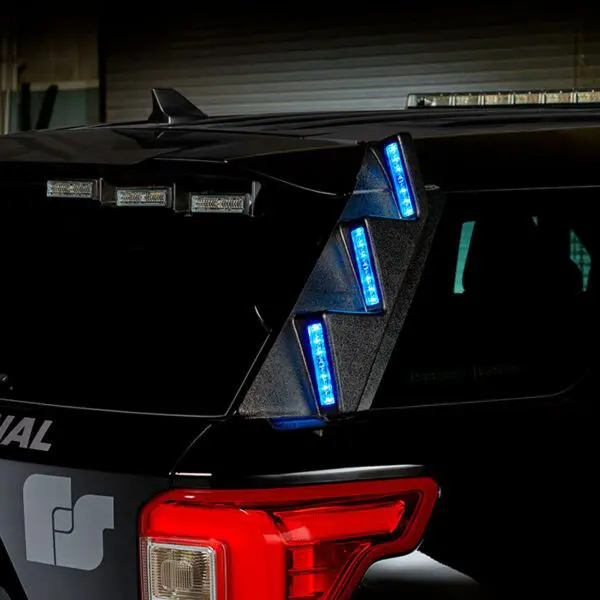

The MicroPulse® Ultra D-Pillar Lighting System improves traffic safety by providing additional rear warning to the vehicle's exterior. The complete D-Pillar lighting systems includes (6) MPS6U tri-color light heads, (2) shroud/bracket assemblies, (2) harnesses, and (1) EXPMOD24 Expansion Module.
The preassembled D-Pillar lighting system with pre-terminated MPS6U light heads creates a faster and simpler installation for the installer. 3M® VHB tape assists in the mounting of the shrouds to the vehicle. Each D-Pillar Lighting system is specific to the vehicle's make and model.
The D-Pillar lighting system is assembled with MicroPulse Ultra light heads, which contain advanced high-output LEDs. The Pillar Light’s MicroPulse Ultra lens is made of UV-resistant polycarbonate to protect against harsh conditions. Certified to meet IP67, MicroPulse Ultra perimeter Pillar Lights have fully encapsulated water-proof housing that provides a barrier against dust, moisture, and water.
The MicroPulse Ultra D-Pillars Lights are controlled by a Convergence Network/FSJoin™ siren or controller that can be programmed through the Convergence Network Configuration Software to provide customizable control capability. The standard tri-color MicroPulse Ultra Pillar Lights allow full customization of flash patterns and auxiliary signals such as brake, reverse (when ordered as Red/Blue/White), and turn signals (when ordered as Red/Blue/Amber).
FS Technologies
SKU Specifications
| SKU | Operating Current | Max Current | Standby Current | Input Voltage | Operating Temperature | Number of Flash Patterns | LED Count | LED Colors | Dome Colors | Harness/Connection Type | Harness Length | Mount | Approvals | Color Option | Length | Width | Height | Diameter | Ship Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ELSD-TAH21RBW | 0.75 A (Per Head) | N/A | N/A | N/A | -40˚ to 176˚ F (-40˚ to +80˚ C) | 25 | N/A | Red/Blue/White | Clear | Weather Tight | N/A | Surface | CCR Title 13,IP67 | Tri-Color | 26.0 in (66.0 cm) | 10.0 in (25.4 cm) | 6.7 in (17.0 cm) | N/A | 7.50 |
| ELSD-TAH21RBA | 0.75 A (Per Head) | N/A | N/A | N/A | -40˚ to 176˚ F (-40˚ to +80˚ C) | 25 | N/A | Amber/Blue/Red | Clear | Weather Tight | N/A | Surface | CCR Title 13,IP67 | Tri-Color | 26.0 in (66.0 cm) | 10.0 in (25.4 cm) | 6.7 in (17.0 cm) | N/A | 7.50 |
| ELSD-FPIU20RBW | 0.75 A (Per Head) | N/A | N/A | N/A | -40˚ to 176˚ F (-40˚ to +80˚ C) | 25 | N/A | Red/Blue/White | Clear | Weather Tight | N/A | Surface | CCR Title 13,IP67 | Tri-Color | 26.0 in (66.0 cm) | 10.0 in (25.4 cm) | 6.7 in (17.0 cm) | N/A | 7.50 |
| ELSD-FPIU20RBA | 0.75 A (Per Head) | N/A | N/A | N/A | -40˚ to 176˚ F (-40˚ to +80˚ C) | 25 | N/A | Amber/Blue/Red | Clear | Weather Tight | N/A | Surface | CCR Title 13,IP67 | Tri-Color | 26.0 in (66.0 cm) | 10.0 in (25.4 cm) | 6.7 in (17.0 cm) | N/A | 7.50 |
