Features

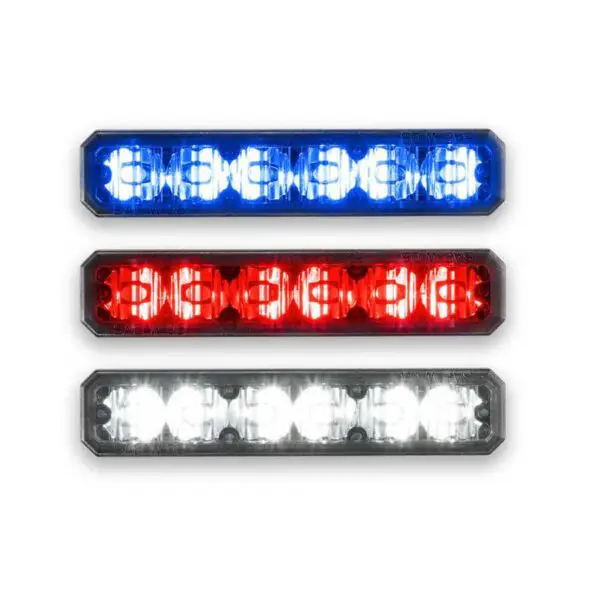

MicroPulse high-performance LED signal lights equip first-responder vehicles with exceptional auxiliary warning capabilities. MicroPulse 650/652 perimeter lights incorporate an advanced high-output LED light head to offer additional warning signals around the outer edges of your vehicle, thus significantly improving safety for first responders by making the vehicle more visible.
These lights are available in both single- and dual-color models, providing MicroPulse 650/652 lights with a range of flexible color and synchronization choices. The emergency vehicle warning light is designed to be programmable, allowing it to function either as a standalone unit or in coordination with several MicroPulse light heads for enhanced effect. The built-in flash patterns facilitate the synchronization of multiple vehicle perimeter lights to flash in unison or in an alternating sequence. Moreover, the compact size and multiple mounting options of these lights mean they can be installed in various locations on a vehicle to improve visibility.
The durable MicroPulse 650/652 lens is crafted from UV-resistant polycarbonate, offering protection against the elements and harsh weather conditions. With certification to meet IP67 standards, MicroPulse perimeter lights feature a fully sealed waterproof housing that effectively guards against the intrusion of dust, moisture, and water, ensuring longevity and reliability in challenging environments.
SKU Specifications
| SKU | Operating Current | Max Current | Standby Current | Input Voltage | Operating Temperature | Number of Flash Patterns | LED Count | LED Colors | Dome Colors | Harness/Connection Type | Harness Length | Mount | Approvals | Color Option | Length | Width | Height | Diameter | Ship Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MPS652-WA | 0.55 A @ 12 Vdc / 0.26 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +176˚ F (-40˚ to +80˚ C) | 10 | N/A | White/Amber | Clear | Wire Leads | N/A | Grille/Hood | SAE J595 Class 1,SAE J845 Class 1,IP67 | Dual-color | 4.2 in (10.8 cm) | 1.7 in (4.3 cm | 0.9 in (2.4 cm) | N/A | 0.75 |
| MPS652-RW | 0.55 A @ 12 Vdc / 0.26 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +176˚ F (-40˚ to +80˚ C) | 10 | N/A | Red/White | Clear | Wire Leads | N/A | Grille/Hood | SAE J595 Class 1,SAE J845 Class 1,IP67 | Dual-color | 4.2 in (10.8 cm) | 1.7 in (4.3 cm | 0.9 in (2.4 cm) | N/A | 0.75 |
| MPS652-BW | 0.55 A @ 12 Vdc / 0.26 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +176˚ F (-40˚ to +80˚ C) | 10 | N/A | Blue/White | Clear | Wire Leads | N/A | Grille/Hood | SAE J595 Class 1,SAE J845 Class 1,IP67 | Dual-color | 4.2 in (10.8 cm) | 1.7 in (4.3 cm | 0.9 in (2.4 cm) | N/A | 0.75 |
| MPS652-BR | 0.55 A @ 12 Vdc / 0.26 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +176˚ F (-40˚ to +80˚ C) | 10 | N/A | Blue/Red | Clear | Wire Leads | N/A | Grille/Hood | SAE J595 Class 1,SAE J845 Class 1,IP67 | Dual-color | 4.2 in (10.8 cm) | 1.7 in (4.3 cm | 0.9 in (2.4 cm) | N/A | 0.75 |
| MPS650-WW | 0.55 A @ 12 Vdc / 0.26 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +176˚ F (-40˚ to +80˚ C) | 10 | N/A | White | Clear | Wire Leads | N/A | Grille/Hood | SAE J595 Class 1,SAE J845 Class 1,IP67 | Single-color | 4.2 in (10.8 cm) | 1.7 in (4.3 cm | 0.9 in (2.4 cm) | N/A | 0.75 |
| MPS650-RR | 0.55 A @ 12 Vdc / 0.26 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +176˚ F (-40˚ to +80˚ C) | 10 | N/A | Red | Clear | Wire Leads | N/A | Grille/Hood | SAE J595 Class 1,SAE J845 Class 1,IP67 | Single-color | 4.2 in (10.8 cm) | 1.7 in (4.3 cm | 0.9 in (2.4 cm) | N/A | 0.75 |
| MPS650-BB | 0.55 A @ 12 Vdc / 0.26 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +176˚ F (-40˚ to +80˚ C) | 10 | N/A | Blue | Clear | Wire Leads | N/A | Grille/Hood | SAE J595 Class 1,SAE J845 Class 1,IP67 | Single-color | 4.2 in (10.8 cm) | 1.7 in (4.3 cm | 0.9 in (2.4 cm) | N/A | 0.75 |
| MPS650-AA | 0.55 A @ 12 Vdc / 0.26 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +176˚ F (-40˚ to +80˚ C) | 10 | N/A | Amber | Clear | Wire Leads | N/A | Grille/Hood | SAE J595 Class 1,SAE J845 Class 1,IP67 | Single-color | 4.2 in (10.8 cm) | 1.7 in (4.3 cm | 0.9 in (2.4 cm) | N/A | 0.75 |
Accessories
Collapse Content| Product # | Description |
|---|---|
| MPSM650-SPACRKT | Kit of four 5-degree rubber mounting wedges for use with (2) MPS650 lights |
| micropulse-brackets |
