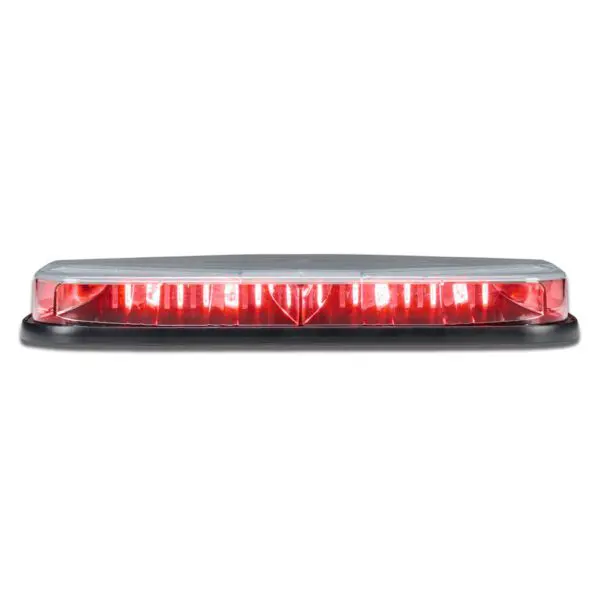

HighLighter® Elite Fire Mini Light Bar
- Low-profile, 15" mini-light bar
- Amber, Blue, Green, Red, and White
- Single-, split-, and dual-color models
- Unique edge cruise lighting available in dual-color models
- (25) flash patterns
- Multi-voltage, 12/24 Vdc
- Permanent, suction cup, and magnet mount options
- Five-year warranty
Features
Federal Signal’s HighLighter® Elite is a low-profile, 15-inch light bar that combines advanced technology with a durable design. Available in single, split, and dual-color models, the fire truck LED mini light bar features Solaris® Reflector Technology for 360-degree illumination and SpectraLux® for dual-color customization. With 25 flash patterns, including edge cruise lighting, and FSLink® synchronization, this mini light bar is where visibility and safety shine. FSLink shared flash pattern software allows various warning lights to be wired together, set in a common pattern, and then synchronized together in order to flash simultaneously or alternately.
To withstand the rigors of emergency environments, the HighLighter Elite mini light bar is crafted from high-quality materials for long-lasting performance. With features like that, you can confidently use your fire command vehicle to operate at its best.
Federal Signal has established a tradition of safety and innovation, exemplified by the HighLighter Elite. When you’re in need of unmatched emergency lighting for your fire truck, we have the performance based solutions your team requires. Need more details or want to speak with a representative? Contact the Federal Signal team to get detailed information on the HighLighter® Elite light Bar.
FS Technologies
FSLink is a built-in software technology incorporating a shared flash pattern set. This shared flash pattern software allows the various products to be wired together, set in a typical pattern, and then synchronized together to flash simultaneously or alternately.
SKU Specifications
| SKU | Operating Current | Max Current | Standby Current | Input Voltage | Operating Temperature | Number of Flash Patterns | LED Count | LED Colors | Dome Colors | Harness/Connection Type | Harness Length | Mount | Approvals | Color Option | Length | Width | Height | Ship Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HL15PC-AR | 2.0 A @ 12 Vdc / 1.0 A @ 24 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | 25 | 88 | Amber/Red | Clear | 3-Pin Weather Tight | N/A | Permanent | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP69K | Dual-color | 14.7 in (37.2 cm) | 9.5 in (24.1 cm) | 2 in (5.1 cm) | 4.50 |
| HL15PC-R | 2.0 A @ 12 Vdc / 1.0 A @ 24 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | 25 | 36 | Red | Clear | 3-Pin Weather Tight | N/A | Permanent | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP69K | Single-color | 14.7 in (37.2 cm) | 9.5 in (24.1 cm) | 2 in (5.1 cm) | 4.50 |
| HL15MC-RW | 2.0 A @ 12 Vdc / 1.0 A @ 24 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | 25 | 88 | Red/White | Clear | 3-Pin Weather Tight | N/A | Magnet | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP69K | Dual-color | 14.7 in (37.2 cm) | 8.4 in (21.5 cm) | 2.1 in (5.4 cm) | 4.30 |
| HL15MC-AR | 2.0 A @ 12 Vdc / 1.0 A @ 24 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | 25 | 88 | Amber/Red | Clear | 3-Pin Weather Tight | N/A | Magnet | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP69K | Dual-color | 14.7 in (37.2 cm) | 8.4 in (21.5 cm) | 2.1 in (5.4 cm) | 4.30 |
| HL15SC-AR | 2.0 A @ 12 Vdc / 1.0 A @ 24 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | 25 | 88 | Amber/Red | Clear | 3-Pin Weather Tight | N/A | Suction-Cup Magnet | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP69K | Dual-color | 14.7 in (37.2 cm) | 8.4 in (21.5 cm) | 2.2 in (5.6 cm) | 5.30 |
| HL15MC-R | 2.0 A @ 12 Vdc / 1.0 A @ 24 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | 25 | 36 | Red | Clear | 3-Pin Weather Tight | N/A | Magnet | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP69K | Single-color | 14.7 in (37.2 cm) | 8.4 in (21.5 cm) | 2.1 in (5.4 cm) | 4.30 |
| HL15SC-R | 2.0 A @ 12 Vdc / 1.0 A @ 24 Vdc | N/A | N/A | N/A | -40° to +149° F (-40° to +65° C) | 25 | 36 | Red | Clear | 3-Pin Weather Tight | N/A | Suction-Cup Magnet | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP69K | Single-color | 14.7 in (37.2 cm) | 8.4 in (21.5 cm) | 2.2 in (5.6 cm) | 5.30 |
Videos
Highlighter Elite Product Video
Accessories
Collapse Content| Product # | Description |
|---|---|
| 454217 | Kit, riser mount, 2.1-inch lift |
| 210883SSG | Kit, self-leveling bracket |
| SW2 | |
| HL15-HDKIT | Kit, tow wing light mount, 10-ft cable |
