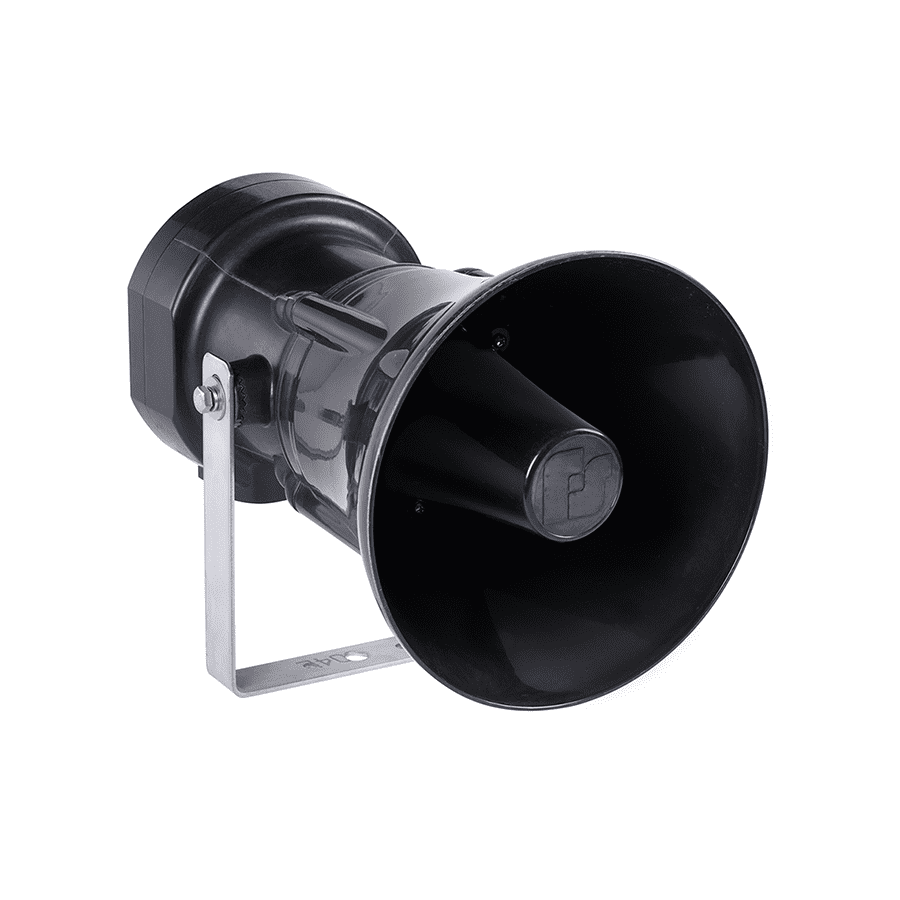

GEN-IIB/C and GEN-IIB/C-ISMT Non-Metallic Zone 1 Loudspeaker

Federal Signal’s non-metallic loudspeakers, model GEN-IIB/C and GEN-IIB/C-ISMT, are designed for use in industrial, public address and general alarm applications where corrosion resistance and ATEX/IEC Certification are required. GEN-IIB/C and GEN-IIB/C-ISMT are available in an ATEX/IEC Zone 1 explosion-proof version certified IP66 for ingress of dust and combustible gas to Group IIC or Group IIB + H2 (Hydrogen). GEN IIB/C-ISMT differs from the standard model GEN IIB/C in that it includes an intelligent speaker monitoring and tapping (ISMT) interface built into the speaker to allow remote monitoring and tapping of the speaker without needing to physically access the deployed speaker.

GEN IIB/C and GEN IIB/C-ISMT loudspeakers, designed to accept an audio input of 100 Vrms, are manufactured from corrosion-resistant, anti-static glass-reinforced polyester (GRP). Each speaker is a transformer coupled with a maximum output of 25 W and is supplied with preset taps (25, 15, 10, and 6) to adjust sound output.

Mounting is supplied by a “common template” stainless steel ratcheted mounting bracket that locks the loudspeaker in position at a specific angle without slipping. The optional swivel mounting bracket contains three slotted mounting holes to further adjust the speaker position and adapt to a variety of different surfaces.

Connection for field wiring is provided by two M20 x 1.5 mm threaded openings in the bottom of the main speaker bottom and terminated via internal terminal blocks. All external hardware is manufactured from stainless steel to resist corrosion and provide serviceability for years to come.
