G-MSC Custom Global Series® Hazardous Location Custom Fixtures

Fully factory assembled
Non-metallic corrosion-resistant GRP housing
Optional stainless steel ratchet adjustable mounting U-bracket for G-MSC-2b only (field assembly required)
316 stainless steel dome guard included on visual signals
Standard M20 cable entries; 1/2" NPT and 3/4" NPT adapters available; M25 cable entry option
No mounting orientation limitations
LED has 8 field selectable flash patterns, default setting to "Flashing at 60 FPM"
High-output strobe available in 15J or 21J
Sounder has 15 filed selectable tones, default setting to "C" 1kHz tone
Includes all connector kits/hardware and standard single activation or audio wiring with flying leads. Customer wiring and activations are available, contact factory for assistance.
Optional indicator rings are available in six colors: Black, Blue, Green, Magenta, Red and Yellow
Field customization legend plates available¹
Additional custom configurations are available contact Technical Support or a local sales agent for information

¹Recommended labels: BRADY #B-855 Toughwash labels or ULINE #S16643 weather resistant

.card-img-top{width:85%;padding: 6px;}.card-title{font-size: 15px;color:#000000; font-weight: 500; margin-bottom: 0; margin-top: 0 !important;text-align:center;}.card-title a{color:#000000;}.card-body p{margin-top:0;font-size: 14px;color:#000000;}.card-body p a{color:#000000;}@media screen and (min-width: 1024px) { .icon-features .col-md-1{width:14%;text-align:center;}}@media screen and (max-width: 768px) { .icon-features .col-md-1 img{height:157px;}.card-title{font-size: 14px;}}

Where to Buy Request Information

Features
SKU Specifications

Features

G-MSC models are quick and easy inter-connecting modular products that consist of our Global Series® audible and visual product line.

All combined fixture devices must start with the increased safety “Ex de” models, these units can be combined for a multitude of configurations. The patent-pending connecting system greatly simplifies a user’s installation and wiring experience by requiring only a single explosion-proof wiring gland external to the devices.

Two standard configurations are available pre-assembled from the factory: Linear and Parallel. Other custom configurations are available to meet unique project requirements. Some restrictions apply: contact our Technical Support team or your local sales representative for more options. Devices can include two to six units. For example, the largest configuration offered is a six-unit device that is available in all visual or two audible and four visual signals.

Configured unit certifications are dependent on models chosen. Certifications include:

IP66 enclosure
G-LED and G-STR units are IP69K compliant
Zone 1, 21 Rated, IECEx, ATEX, Ex d IIC, Ex de IIC, and Ex tb IIIC
UL and cUL Listed for Class I, Division 2, Groups A, B, C, and D; Class II, Division 2, Groups F and G; and Class III
UL Fire Listed (24VDC, Clear Strobe, and Sounder only)
UKEX Certified

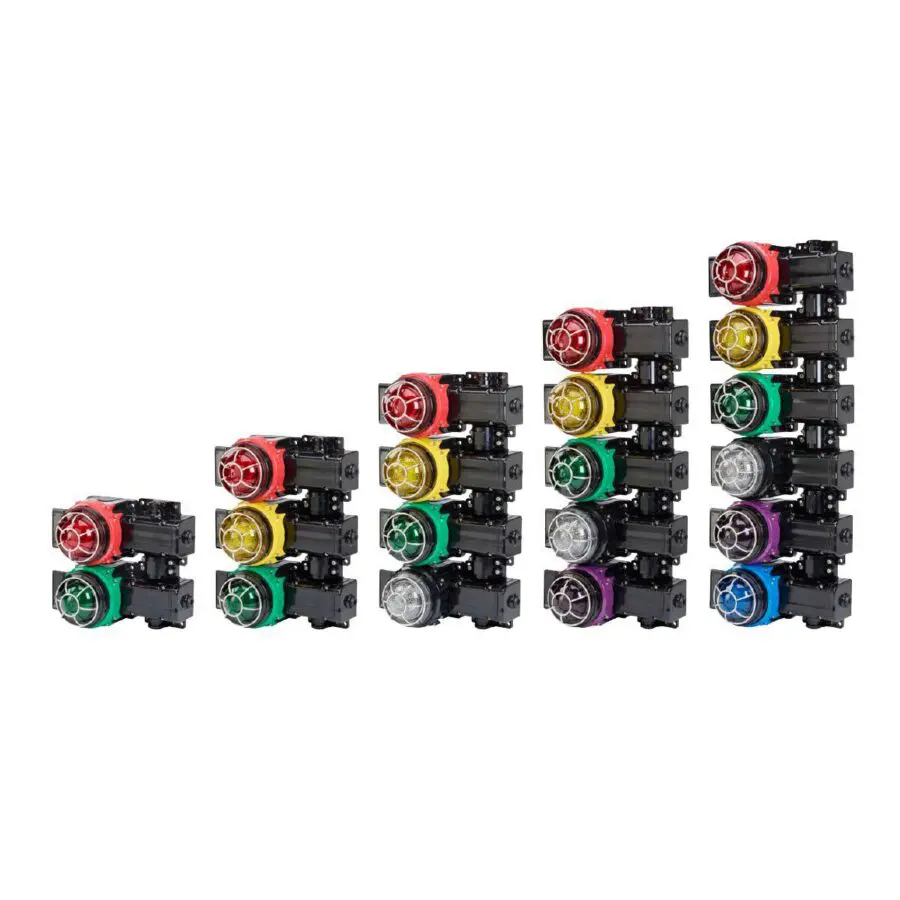

G-MSC Linear Configurations

Available from 2 to 6 devices in a linear configuration.
Device position start bottom to top.
Position #1 determined by proximity to junction box.

Linear Position #6
Linear Position #5
Linear Position #4
Linear Position #3
Linear Position #2
Linear Position #1

G-MSC-2A G-MSC-3A G-MSC-4A G-MSC-5A G-MSC-6A

G-MSC Parallel Configurations

Available from 2 to 6 devices in a stacked parallel configuration.
Device position start bottom left, proceed left to right, then bottom to top.

G-MSC-2B

G-MSC-2C
Shown with Dual Mount U-Bracket

G-MSC-3B

G-MSC-4C

G-MSC-5C

Parallel Position #5
Parallel Position #3
Parallel Position #1

G-MSC-6C

Parallel Position #6
Parallel Position #4
Parallel Position #2

Restriction

Audible devices should be restricted to position 1 or 2 in the Linear fixtures and Positions 1,2,3, or 4 in the Parallel Fixtures. Position 1 designated by the first device connected to the junction box, customer supplied.
