RSL Radiant Steady Light Module

Modular design allows for up to 7 light modules: 6 light modules & 1 sound module (1 channel) or 5 light modules & 1 sound module (2 channels)
Steady light effect with 6 bright LEDs
Two lens types: Clear and Colored
Compatible with 12-24VAC/DC or 120-240VAC*
PLC compatible
Indoor/outdoor use
Type 4X, IP65 enclosure when installed with both gaskets included with each module
IP69K compliant when installed with both gaskets included on each module
CE Certified
UL and cUL Listed

Voltage dependent on selected wiring module

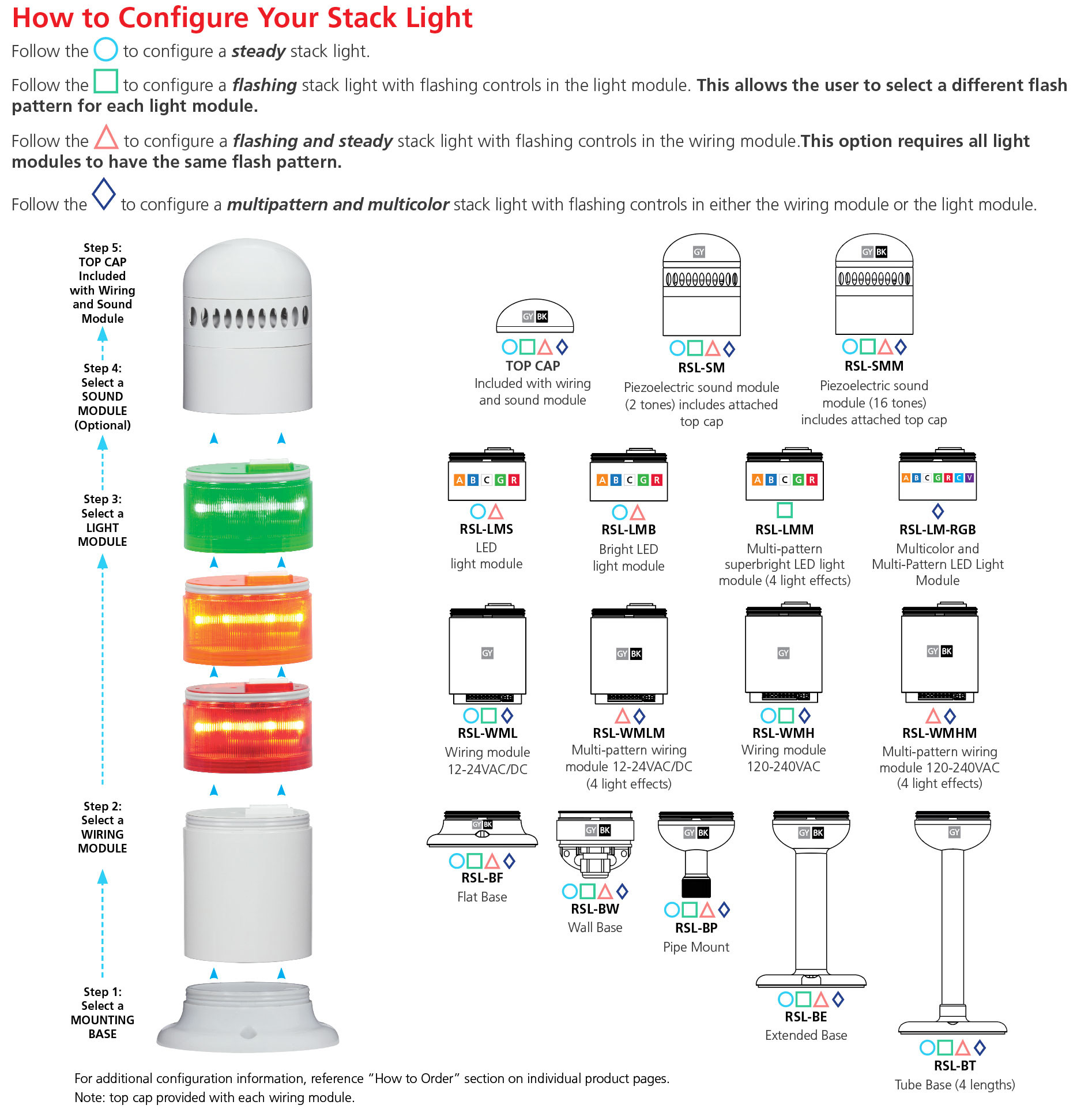

Follow the blue circle to configure a Steady Stack Light. (see instructions below).
All required products are listed below in related parts.

Features
SKU Specifications
Videos

Features

RSL-LMS offers a steady LED light with high optical performance. Its modular design and simple functionality are the right choice for a basic stack light application.

RSL-LMS-F consists of a colored fresnel lens with a colored light source. The use of a colored lens with the same colored LED allows optimization of the emission frequency, producing a rich intense light output.

RSL-LMS-O consists of an opaque colored lens with a colored LED. The opaque characteristic allows an optimally diffused light without disturbing the operator.
