G-MSC-2 Global Series® Hazardous Location Dual Signal

GRP (Glass Reinforced Polyester) Non-metallic corrosion resistant design
Optional stainless steel ratchet adjustable mounting U-bracket (field assembly required)
316 stainless steel dome guard included on visual signals
Standard M20 cable entries; 1/2" NPT and 3/4" NPT adapters available; M25 cable entry option
LED has 8 field selectable flash patterns
High-output strobe available in 15J or 21J
Sounder has 15 field selectable tones
Optional indicator rings available in six colors: Black, Blue, Green, Magenta, Red and Yellow
Field customizable legend plates available¹

¹Recommended labels: BRADY #B-855 Toughwash labels or ULINE #S-16643 weather resistant

Features

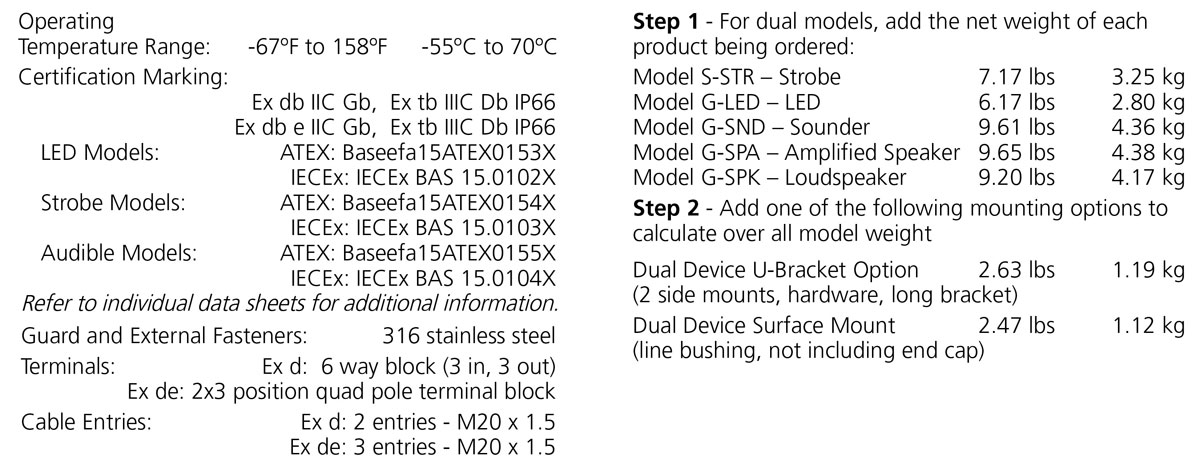

SKU Specifications

Features

Federal Signal patented G-MSC Global Series® Dual Models allows two audible or visual devices to be combined as one complete assembly. This dual model offers a common increased safety “Ex de” field wiring chamber which greatly simplifies the installation and wiring of two signals. The dual signal can be surface mounted or mounted with an optional ratchet adjustable stainless steel mounting U-bracket.

Either of the devices can be wired to function independently or in tandem1. Two like devices can also be combined to support a redundant alerting system, simplifying installation of A/B redundant systems.

Refer to individual Global Series data sheets for additional information.

Dual unit certifications are dependent on models chosen. Certifications include:

IP66 enclosure
G-LED and G-STR units are IP69K compliant
Zone 1, 21 Rated, IECEx, ATEX, Ex d IIC, Ex de IIC and Ex tb IIIC
UL and cUL Listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; and Class III
UL Fire Listed (24VDC, Clear Strobe and Sounder only)
UKEX Certified
