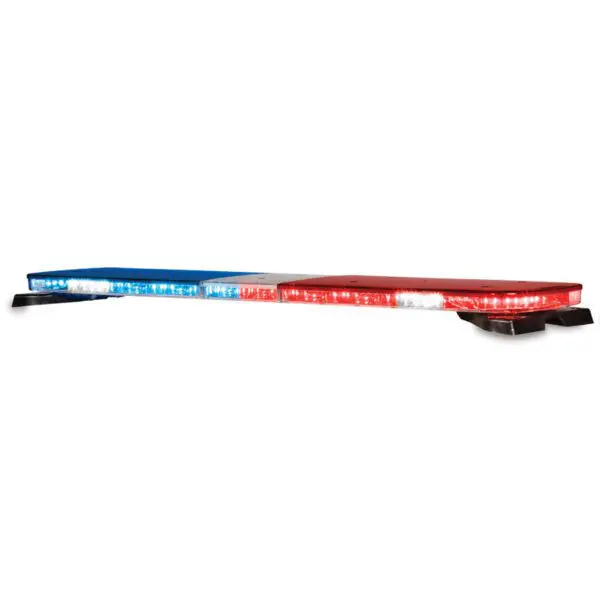

Allegiant® Serial Light Bar
- Low-profile, linear light bar
- Available in 45", 53", 61", and 70" lengths
- Amber, Blue, Green, Red, and White
- Single- and dual-color capability
- Built-in SignalMaster™ directional warning
- Front flood, rear flood, takedowns, alley lights, work lights, S/T/T (except 45"), and bed light (except 45") are available
- Low-power mode
- (28) flash patterns; independently controlled front and rear flash patterns
- 12 or 24 Vdc
- Easy service while installed on the roof top
- Five-year warranty
Features
The Allegiant light bar features a low-profile, linear design that provides a superior multi-color warning on vehicular applications. Designed to keep emergency personnel safe on the road, the Allegiant includes (28) high-performing, attention-getting flash patterns, built-in SignalMaster™, and impressive floodlight capabilities.
SpectraLux® Lights the Way
Exclusive to Federal Signal, the SpectraLux multi-color LED technology provides the ability for a LED light source to change color while in operation. In each module of the light bar, the LEDs can change through user-selected flash patterns between Amber,Blue, Red, and White (up to 2 in each module).
Patented Solaris and ROC (Reliable Onboard Circuitry™)
Built with Solaris® LED reflector technology, the Allegiant® light bar is engineered to significantly increase off-axis warning and maximize the LED light source to eliminate dark spots and increase visibility while on the road. ROC technology minimizes potential failure points in the light bar — replacing wires, connectors, and assemblies with PCB assemblies to reduce labor repair time and increase road time for law enforcement personnel.
FSJoin™
Programming is made easy with FSJoin in conjunction with Pathfinder® light/siren controller. Through the Convergence Network software, multiple warning devices can be programmed to synchronize to create a unified vehicle solution.
Easy to Install and Operate
The Allegiant is available in traditional cable (discrete) and Convergence Network (serial) models. The discrete version features front/rear control, two modes of operation, and low power mode. Options including front flood, rear white lighting, bed light, and S/T/T are available. The serial models offer all the features and options of the discrete with additions of SignalMaster™ and cruise mode.
Configurable to Fit Your Needs
There are multiple mounting options available for the Allegiant light bar, including permanent, flat, hook, and low hook. The Allegiant comes in standard lengths of 45", 53", 61", and 70", and LED modules color combinations can be custom configured to fit your needs of warning lights.
FS Technologies
SKU Specifications
| SKU | Operating Current | Max Current | Standby Current | Input Voltage | Operating Temperature | Number of Flash Patterns | LED Count | LED Colors | Dome Colors | Harness/Connection Type | Harness Length | Mount | Approvals | Color Option | Length | Width | Height | Ship Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ALGT53J-F2HMC | 11 A @ 12 Vdc / 6 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +149˚F (-40˚ to +65˚C) | 28 | N/A | Red/White | Clear | N/A | N/A | Hook | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP65 | Dual-color | 52.7 in (133.9 cm) | 11.2 in (28.4 cm) | 2.0 in (5.1 cm) | 26.60 |
| ALGT53J-F2HC | 11 A @ 12 Vdc / 6 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +149˚F (-40˚ to +65˚C) | 28 | N/A | Red/White | Clear | N/A | N/A | Hook | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP65 | Dual-color | 52.7 in (133.9 cm) | 11.2 in (28.4 cm) | 2.0 in (5.1 cm) | 26.60 |
| ALGT53J-F2HMRC | 11 A @ 12 Vdc / 6 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +149˚F (-40˚ to +65˚C) | 28 | N/A | Red/White | Red,Clear | N/A | N/A | Hook | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP65 | Dual-color | 52.7 in (133.9 cm) | 11.2 in (28.4 cm) | 2.0 in (5.1 cm) | 26.60 |
| ALGT53J-F2HRC | 11 A @ 12 Vdc / 6 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +149˚F (-40˚ to +65˚C) | 28 | N/A | Red/White | Red,Clear | N/A | N/A | Hook | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP65 | Dual-color | 52.7 in (133.9 cm) | 11.2 in (28.4 cm) | 2.0 in (5.1 cm) | 26.60 |
| ALGT45J-F2HMC | 9 A @ 12 Vdc / 5 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +149˚F (-40˚ to +65˚C) | 28 | N/A | Red/White | Clear | N/A | N/A | Hook | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP65 | Dual-color | 44.5 in (113.0 cm) | 11.2 in (28.4 cm) | 2.0 in (5.1 cm) | 23.00 |
| ALGT45J-F2HC | 9 A @ 12 Vdc / 5 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +149˚F (-40˚ to +65˚C) | 28 | N/A | Red/White | Clear | N/A | N/A | Hook | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP65 | Dual-color | 44.5 in (113.0 cm) | 11.2 in (28.4 cm) | 2.0 in (5.1 cm) | 23.00 |
| ALGT45J-F2HMR | 9 A @ 12 Vdc / 5 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +149˚F (-40˚ to +65˚C) | 28 | N/A | Red/White | Red | N/A | N/A | Hook | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP65 | Dual-color | 44.5 in (113.0 cm) | 11.2 in (28.4 cm) | 2.0 in (5.1 cm) | 23.00 |
| ALGT45J-F2HR | 9 A @ 12 Vdc / 5 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +149˚F (-40˚ to +65˚C) | 28 | N/A | Red/White | Red | N/A | N/A | Hook | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP65 | Dual-color | 44.5 in (113.0 cm) | 11.2 in (28.4 cm) | 2.0 in (5.1 cm) | 23.00 |
| ALGT53J-P2LC | 11 A @ 12 Vdc / 6 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +149˚F (-40˚ to +65˚C) | 28 | N/A | Blue/White | Clear | N/A | N/A | Low Hook | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP65 | Dual-color | 52.7 in (133.9 cm) | 11.2 in (28.4 cm) | 2.0 in (5.1 cm) | 26.60 |
| ALGT53J-P1LC | 11 A @ 12 Vdc / 6 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +149˚F (-40˚ to +65˚C) | 28 | N/A | Red/Blue/White | Clear | N/A | N/A | Low Hook | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP65 | Dual-color | 52.7 in (133.9 cm) | 11.2 in (28.4 cm) | 2.0 in (5.1 cm) | 26.60 |
| ALGT45J-P2LB | 9 A @ 12 Vdc / 5 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +149˚F (-40˚ to +65˚C) | 28 | N/A | Blue/White | Blue | N/A | N/A | Low Hook | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP65 | Dual-color | 44.5 in (113.0 cm) | 11.2 in (28.4 cm) | 2.0 in (5.1 cm) | 23.00 |
| ALGT45J-P2LC | 9 A @ 12 Vdc / 5 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +149˚F (-40˚ to +65˚C) | 28 | N/A | Blue/White | Clear | N/A | N/A | Low Hook | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP65 | Dual-color | 44.5 in (113.0 cm) | 11.2 in (28.4 cm) | 2.0 in (5.1 cm) | 23.00 |
| ALGT45J-P1LRB | 9 A @ 12 Vdc / 5 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +149˚F (-40˚ to +65˚C) | 28 | N/A | Red/Blue/White | Red,Blue | N/A | N/A | Low Hook | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP65 | Dual-color | 44.5 in (113.0 cm) | 11.2 in (28.4 cm) | 2.0 in (5.1 cm) | 23.00 |
| ALGT45J-P1LC | 9 A @ 12 Vdc / 5 A @ 24 Vdc | N/A | N/A | N/A | -40˚ to +149˚F (-40˚ to +65˚C) | 28 | N/A | Red/Blue/White | Clear | N/A | N/A | Low Hook | SAE J595 Class 1,SAE J845 Class 1,CCR Title 13,IP65 | Dual-color | 44.5 in (113.0 cm) | 11.2 in (28.4 cm) | 2.0 in (5.1 cm) | 23.00 |
Videos
Allegiant police lightbar
Allegiant police lightbar
Allegiant police lightbar (Spanish)
Allegiant lightbar bed light feature
Allegiant Flash Patterns for Police
Allegiant Light Bar Cruise and Low Power Feature
Allegiant™ ROC Technology
Allegiant™ Light Bar SpectraLux Feature
Allegiant™ Light Bar Standard vs Multi-Position Alley
FSJoin: Downloading the Convergence Network Configuration Software
FSJoin: Introduction to the Convergence Network Configuration Software
FSJoin: Prebuilt Legacy Patterns and Basic Custom Programming
FSJoin: Diagnostics
Accessories
Collapse Content| Product # | Description |
|---|---|
| Z864901329 | Bracket kit for mounting to Allegiant/Integrity/Legend |
| Z17502984A-60 | 60-ft highly flexible CAT5 cable |
